Product Description

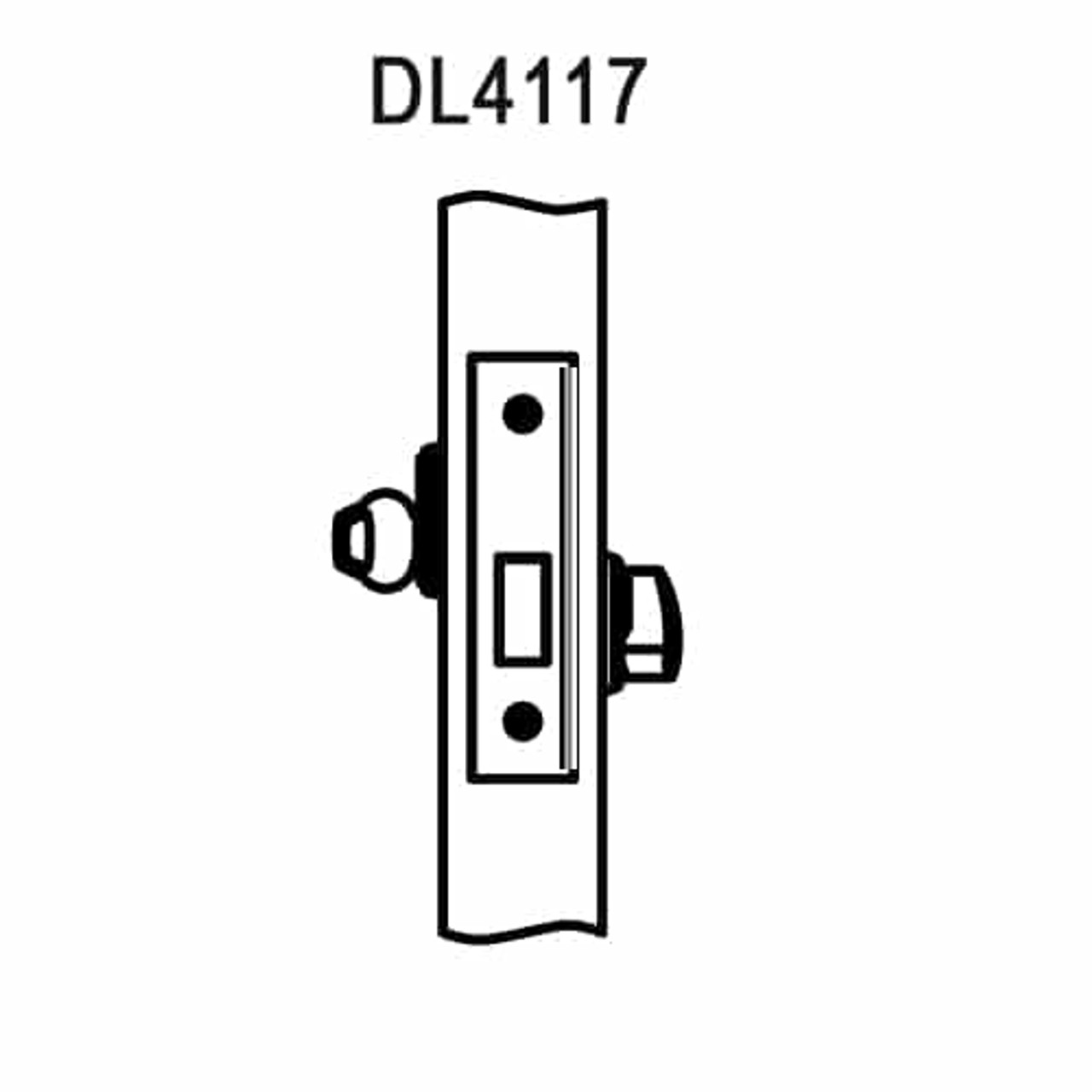

DL4117-618-LC Corbin DL4100 Series Classroom Mortise Deadlocks with Single Cylinder in Bright Nickel Finish

The Corbin DL4117-618-LC series deadlock is a Grade 1 extra heavy duty mortise deadbolt lock. The DL4100 series is used for commercial, institutional, and industrial applications. This Deadbolt lock is ideal for Interior and exterior doors for schools/universities, hospitals/healthcare facilities, offices, retail, and government facilities.

Classroom lock: By key outside and by thumbturn inside. Thumbturn will retract but not project deadbolt.

Features and Benefits:

• Bright Nickel finish
• Grade 1 mortise deadlocks
• Single cylinder
• Handing: Non handed
• No cylinders are included with this lock
• Door thickness: 1-3/4"(44mm) standard
• Backset: 2-3/4" (70mm) standard
• Strike: Wrought brass or bronze, 3-1/2" (89mm) x 1-1/8" (29mm) standard
• Front: Brass, bronze, stainless steel. 4-5/8"(117mm) x 1-1/8" (29mm).
• Deadbolt: Steel with hardened pin; 1" (25mm) throw.
