Product Description

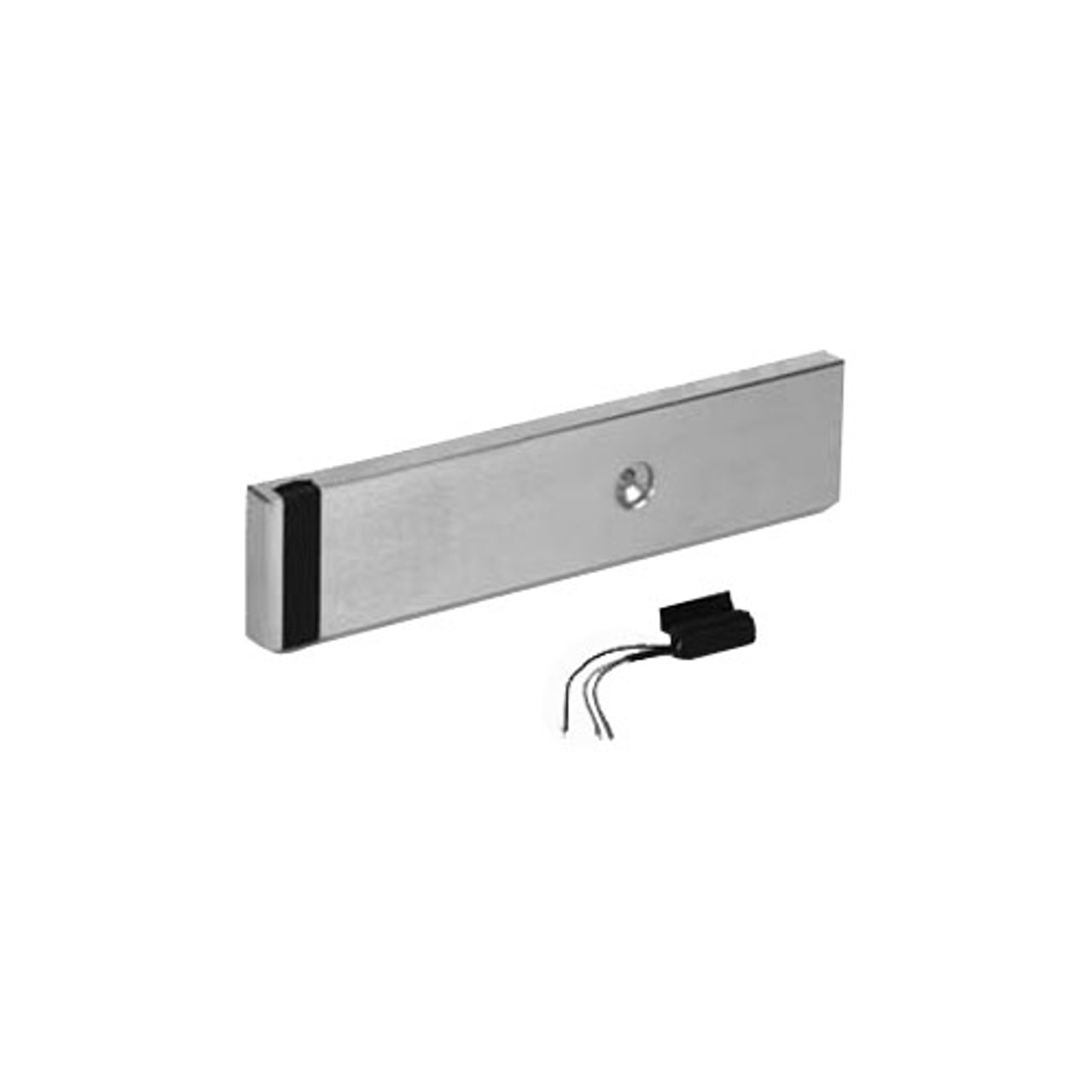

DSR04 RCI DSS Retrofit Kit for 8320

The DSS option monitors the position of the door upon which the lock is installed. A SPDT reed switch mounted within the lock cavity eliminates the need for extra sensors to be installed on the door for notification of security or access control systems. The DSS option comes with a magnet pre-installed into the lock armature plate for signaling the reed switch in the housing when the door is closed.

Features and Benefits:

• Steel finish
• Compatible with 8320 models
• Dimensions: 5/8"(16mm) standard
