Product Description
E5086XSWL-676-41 Eplex Electronic Pushbutton Lock with Schlage 'C' Keyway Mortise Lock in Black with Satin Chrome Accents Finish
The Eplex E5086XSWL-676-41 series of Eplex Electronic Pushbutton Lock eliminate problems and costs associated with issuing, controlling and collecting keys and cards. The E-Plex 5000 Electronic Pushbutton Lock Series provides interior and exterior access by combination. Unican Kaba Ilco Simplex is the leader in top of the line security solutions that presents industrial strength combination lock with high quality security products for over 100 years now. For a security lock, the highly weather resistant Eplex 5000 Series earns an impressive Grade 1 rating from ANSI (American National Standards Institute) - this rating is the highest one they give out for quality. Being vandal protected hardware, the Eplex series of PIN based locks find widespread acceptance in high-traffic commercial, institutional, and government buildings throughout the world.
Features and Benefits:
- Black with Satin Chrome Accents Finish
- Electronic Pushbutton Lock
- PIN Access for Entry and Egress
- Extra heavy-duty Grade 1 lock with solid cast housings construction
- Multiple Users with up to 100 Codes which can be upgraded to 300 Codes with optional software
- ADA compliant lock
- 3,000 audit events
- American Steel Mortise (ASM) function
- With Winston lever
- American Standard Mortise Locking device with 1-1/4" (32 mm) face plate; without deadbolt
- Locks are programmed via keypad or with optional Microsoft Excel-based software
- Non-handed operation; pre-assembled for left-hand door installations and is easily changed in the field
- UL/ULC fire door rating for "A" labeled doors up to 3 hours
- Audible and visual indicators alongwith low battery visual indicator
- Batteries are located in mortise housing that offers quick and easy battery replacement for institutions - lock data is maintained even if batteries fail
- Vandal resistant hardware with solid metal pushbuttons
- It easily installs on wood or metal doors with four bolt installation and no wiring
- Code length - it is adjustable to accept 4 to 8 digits
- Anti-tamper lockout - it is adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
- Re-lock time - it is adjustable from 2 to 20 seconds
- Key-in-Lever Kaba Cylinder (Schlage "C" Keyway) included as always

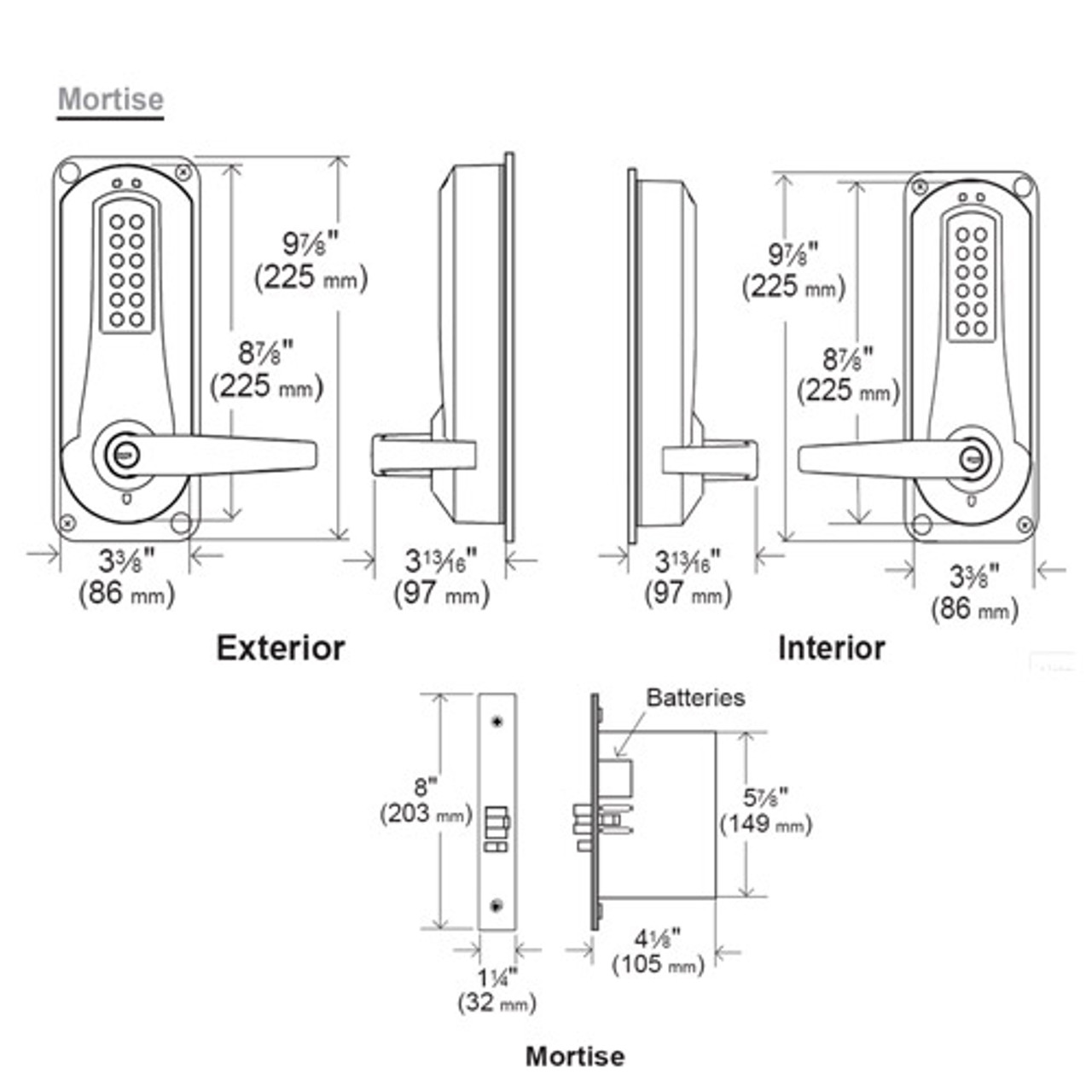

- Minimum Stile required: 5" (127 mm)
- Backset: Mortise- 2-3/4 inch (70 mm)
- Latch: 3/4" (19 mm)
- 1 year warranty from date of installation; built-in warranty counter in lock memory
Items supplied include: Installation manual, quick reference guide, operations manual, full-scale template, required installation hardware and tailpiece for specified key override
