Product Description

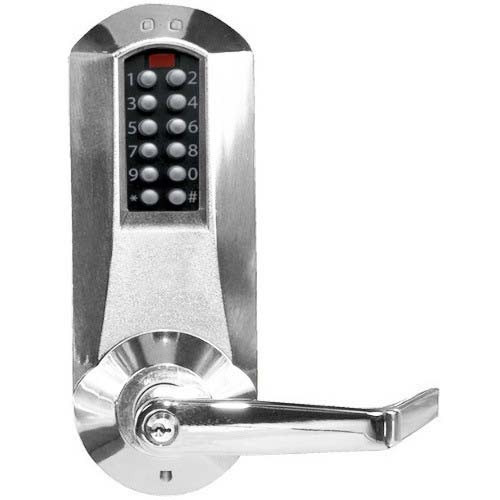

E5251XSWL-606-41 Eplex Pushbutton Lever Lock with Schlage 'C' Keyway in Satin Brass Finish
The Eplex E5251XSWL-606-41 series of Eplex Electronic Pushbutton Lock eliminate problems and costs associated with issuing, controlling and collecting keys and cards. The E-Plex 5200 Electronic Pushbutton Lock series provides exterior access by combination, while allowing free egress. Unican Kaba Ilco Simplex is the leader in top of the line security solutions that presents industrial strength combination lock with high quality security products for over 100 years now. For a security lock, the highly weather resistant Eplex 5200 series earns an impressive Grade 1 rating from ANSI (American National Standards Institute)- this rating is the highest one they give out for quality. The Eplex 5200 grants entry upon successful validation of a 1 to 5 digit code that you pre-program into the lock. Being vandal protected hardware, the Eplex series of PIN based locks find widespread acceptance in high-traffic commercial, institutional and government buildings throughout the world.
Features and Benefits:
- Satin Brass Finish
- Electronic Pushbutton Lock
- Extra heavy-duty Grade 1 lock with solid cast housings construction
- Multiple users with upto 3000 Codes
- ADA compliant lock
- Cylindrical function with Privacy
- With Winston lever
- Batteries located in interior housing cover that offers quick and easy battery replacement for institutions- lock data is maintained even if batteries fail
- Non-handed operation; pre-assembled for left-hand door installations and is easily changed in the field
- UL/ULC fire door rating for "A" labeled doors upto 3 hours
- Audible and visual indicators alongwith low battery visual indicator
- Locks are programmed via E-Plex Enterprise Software (not included) which provides easy management of doors and users
- Audit Capability: 30,000 events
- Code length- it is adjustable to accept 4 to 8 digits
- Anti-tamper lockout- it is adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
- Re-lock time- it is adjustable from 2 to 20 seconds
- Vandal resistant hardware with solid metal pushbuttons
- It easily installs on wood or metal doors with four bolt installation and no wiring
- Key-in-Lever Kaba Cylinder (Schlage "C" Keyway) included as always
- Very ease of installation as the LectroBolt eliminates wiring to or through the door with no risk of pinched wires
- Floating face plate
- Minimum stile required: 5" (127 mm)
- Cylindrical throw latch: 1/2 inch (13 mm) throw latch
- Backset: 2-3/4 inch (70 mm)
- 3-year warranty from date of installation; built-in warranty counter in lock memory
