Product Description

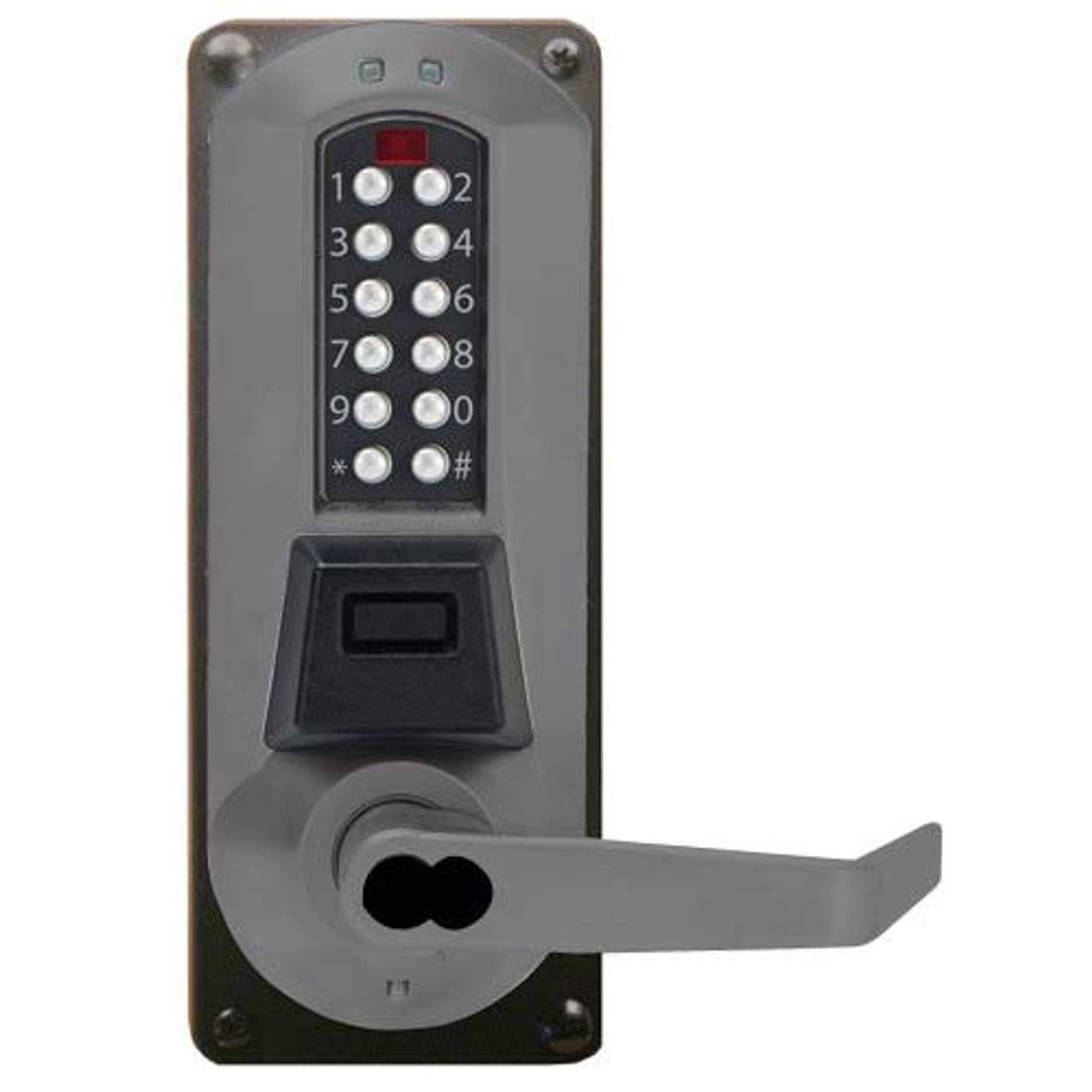

E5786BWL-676-41 Eplex Electronic Pushbutton Lock with Best Core Override Mortise Lock in Black with Satin Chrome Accents Finish

The Eplex E5786BWL-676-41 series of Eplex Electronic Pushbutton Lock eliminate problems and costs associated with issuing, controlling and collecting keys and cards. The E-Plex 5000 Electronic Pushbutton Lock Series provides interior and exterior access by combination. Electronic Pushbutton Lock with dual credential capability - PIN and/or PROX card (13.56 MHz). Lock is scheduled to require credentials based on security and convenience requirements - PIN only, PROX card only, PIN + PROX card. Unican Kaba Ilco Simplex is the leader in top of the line security solutions that presents industrial strength combination. Electronic Pushbutton Lock with dual credential capability - PIN and/or PROX card (13.56 MHz). For a security lock, the highly weather resistant Eplex 5700 series earns an impressive Grade 1 rating from ANSI (American National Standards Institute) - this rating is the highest one they give out for quality.

Features and Benefits:

• Core is not included
• Black with Satin Chrome Accents Finish
• Electronic Pushbutton Lock with dual credential capability - PIN and/or PROX card (13.56 MHz)
• PIN/Card or Dual Credential for Entry and Egress
• Extra heavy-duty Grade 1 lock with solid cast housings construction
• Compatible with PROX Cards
• Number of Users: 3,000 Access Users and (300 using LearnLok feature)
• ADA compliant lock
• Audit Capability: 30,000 Events
• American Steel Mortise (ASM) function
• With Winston lever
• American Standard Mortise Locking device with 1-1/4" (32 mm) face plate; without deadbolt
• Locks are programmed via keypad with LearnLok feature or via optional E-Plex Enterprise Software (not included)
• Non-handed operation; pre-assembled for left-hand door installations and is easily changed in the field
• UL/ULC fire door rating for "A" labeled doors up to 3 hours
• Audible and visual indicators alongwith low battery visual indicator
• Batteries are located in mortise housing that offers quick and easy battery replacement for institutions - lock data is maintained even if batteries fail
• Vandal resistant hardware with solid metal pushbuttons
• It easily installs on wood or metal doors with four bolt installation and no wiring
• Code length - it is adjustable to accept 4 to 8 digits
• Anti-tamper lockout - it is adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
• Re-lock time - it is adjustable from 2 to 20 seconds
• Prepped for Best style removable core - SFIC
• Minimum Stile required: 5" (127 mm)
• Backset: Mortise- 2-3/4 inch (70 mm)
• Latch: 3/4" (19 mm)
• 1 year warranty from date of installation; built-in warranty counter in lock memory

Items supplied include: Installation manual, quick reference guide, operations manual, full-scale template, required installation hardware and tailpiece for specified key override
