Product Description

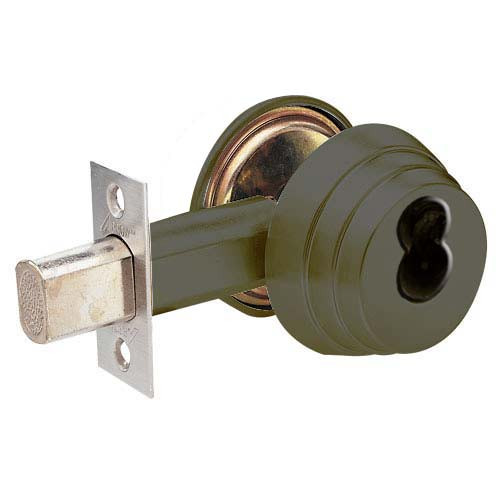

E63-10B-IC Arrow Lock E Series Deadbolt Single Cylinder with Blank Plate Prepped for Removable Core in Dark Oxidized Satin Bronze Finish

The Arrow Lock E63-10B-IC E Series deadlocks are known for value, quality and durability all wrapped up together. The tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and the concealed screws are security features that have made the E Series the most specified deadlock around. This series are certified to BHMA A156.5, Grade 2, UL Listed. The deadbolt is thrown or retracted by key from outside or retracts and blank plate inside.

Features and Benefits:

• NO keys provided, this lock is prepped for removable core
• Core is not included
• Dark Oxidized Satin Bronze finish
• Non-handed
• ANSI: E0162
• Strike: 1-1/8" x 2-1/4" standard
• Single cylinder with blank plate
• Latch: 2-3/8" backset, 1-1/8" front standard
• Cylinder: 6-pin, keyed 5, solid brass, 2 brass keys standard
• Lock prepared to accept 6 or 7-pin IC cylinder, less core
• Accepts 6 or 7 pin, small format, interchangeable cores
• Door thickness: Fits 1-3/8" - 1-3/4", factory set for 1-3/4"
