Product Description

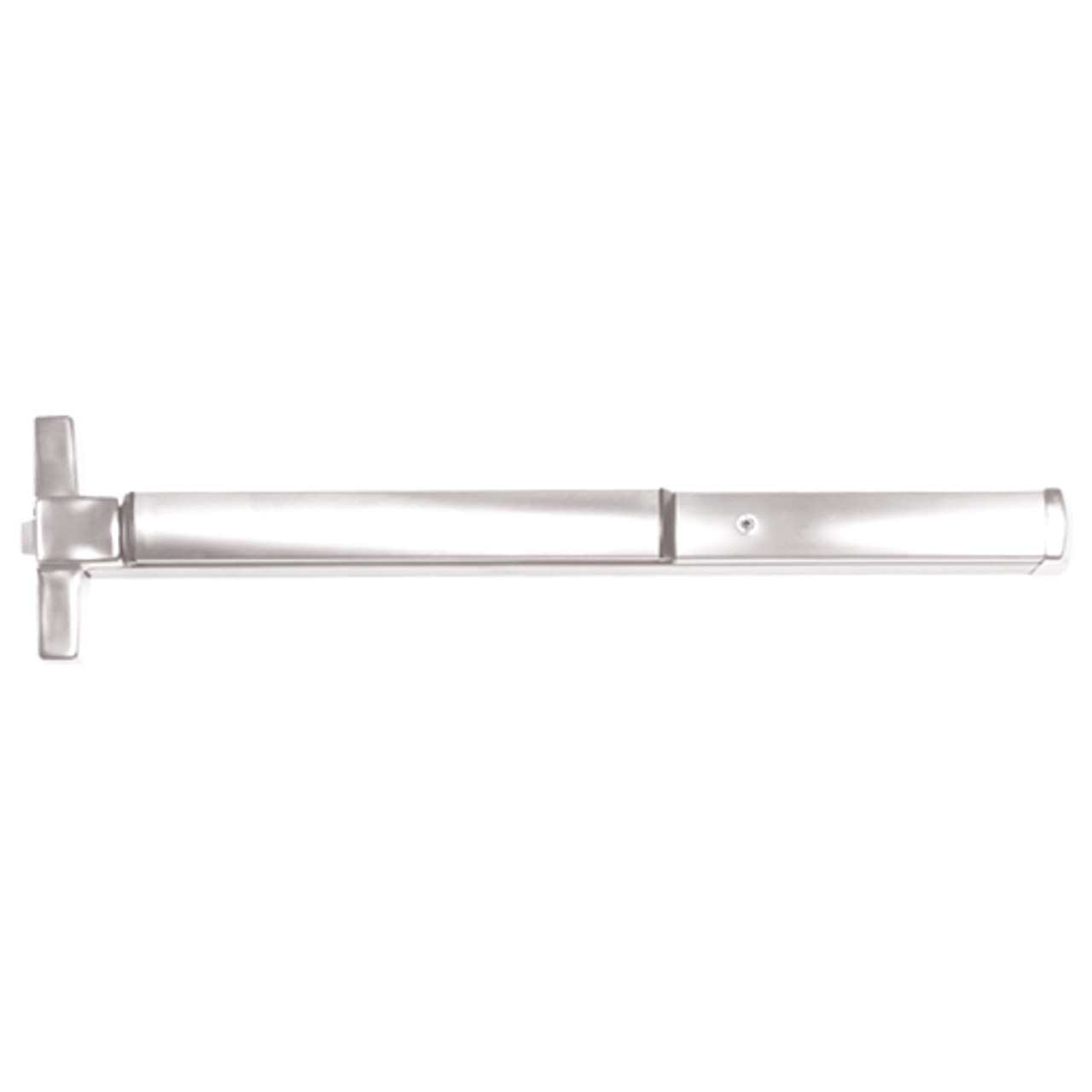

ED4200S-629-M52 Corbin ED4200 Series Non Fire Rated SecureBolt Rim Exit Device with Cylinder Dogging in Bright Stainless Steel Finish

This device is for a 36" door

The Corbin ED4200S-629-M52 rim exit device is designed for applications on narrow stile full glass, aluminum and metal doors in high-use and high-abuse situations. The ED4200 series exit device is ideal for frequent use applications such as schools, factories, hotels, theaters, office, retail complexes and government buildings. All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. The ED4200 exit device series are certified to the ANSI A156.3, Type 4 or 28, Grade 1.

Features and Benefits:

• Bright Stainless Steel finish
• Handing: Non handed
• Cylinder is not included
• Bar Length: Standard: 36" (914mm) bar fits 30"- 36" (762mm-914mm) door.
• Door Thickness: 1-3/4" (44mm) standard
• Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
• Dogging: Cylinder dogging is included
• Fasteners: Machine screws is included
• Strike: Surface-mounted 3/8" (10mm) diameter roller strike
• Stile: Minimum width 2" (51mm).
• Used for narrow stile door
• Stainless steel. Slide action deadbolt with positive deadlocking by auxiliary bolt.
• Deadbolt: Full 3/4" (19mm) projection, 1" (25mm) wide, positive deadlocking by auxiliary bolt.
