Product Description

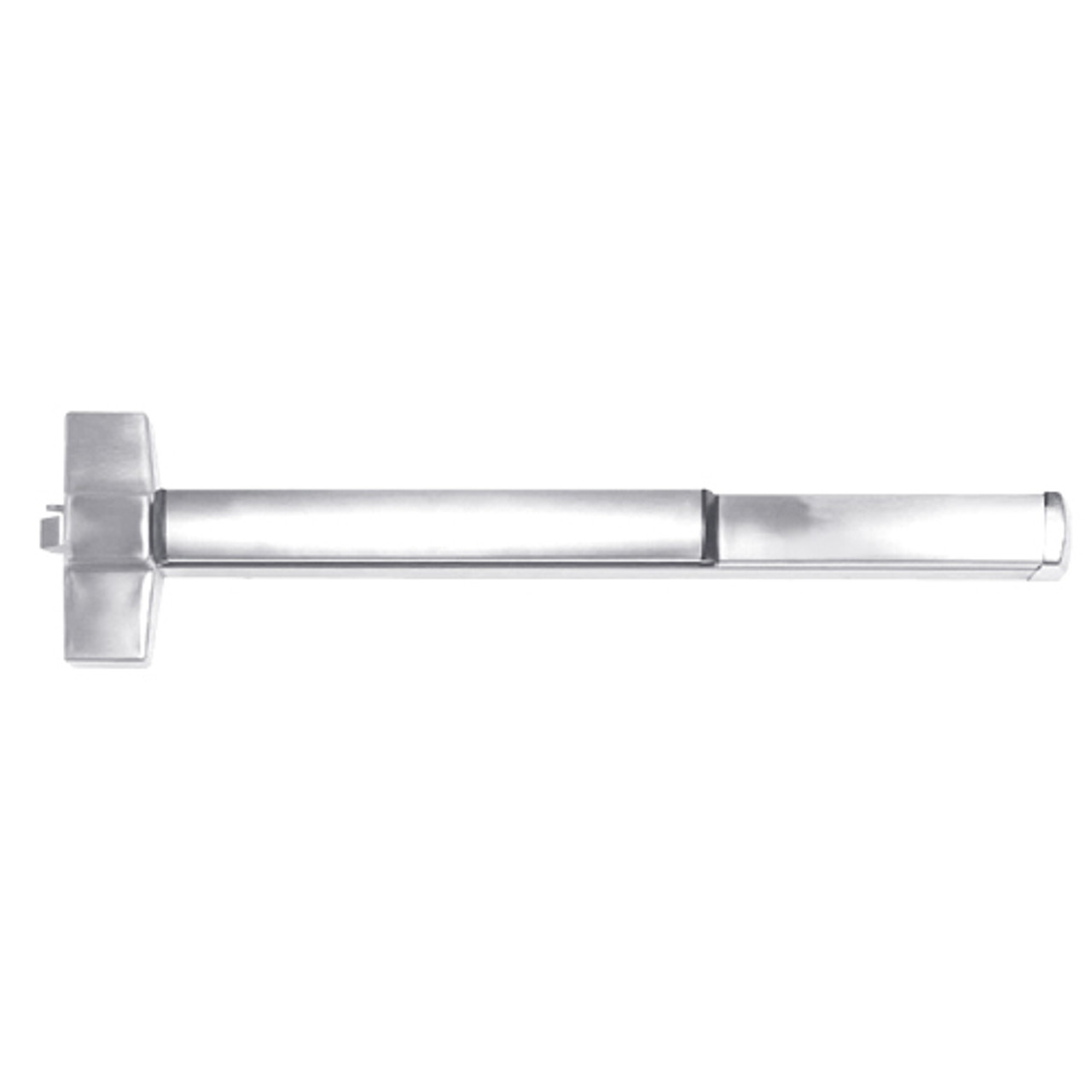

ED5200A-625-M92 Corbin ED5200 Series Fire Rated Rim Exit Device with Touchbar Monitoring in Bright Chrome Finish

This device is for a 36" door

The Corbin ED5200A-625-M92 rim exit device is designed to meet life safety and security requirements. The ED5200 series exit device is ideal for frequent use applications such as schools, factories, hotels, theaters, office, retail complexes and government buildings. All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. The ED5200 exit device series are certified to the ANSI A156.3, Type 1, Grade 1.

Features and Benefits:

• Bright Chrome finish
• Handing: Non handed
• Cylinder is not included
• Bar Length: Standard: 36" (914mm) bar fits 30"- 36" (762mm-914mm) door.
• Door Thickness: 1-3/4" (44mm) standard
• Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
• Dogging feature not available with fire rated
• 3 hour fire-rated device
• Fasteners: Machine screws and wood door fasteners are included
• Strike: Surface-mounted 3/8" (10mm) diameter roller strike
• Stile: Minimum width 4-1/2" (114mm)
• Touchbar monitoring or signaling is included
• Latchbolt: 3/4" (19mm) throw, stainless steel pullmantype with stainless steel deadlocking latch.
