Product Description

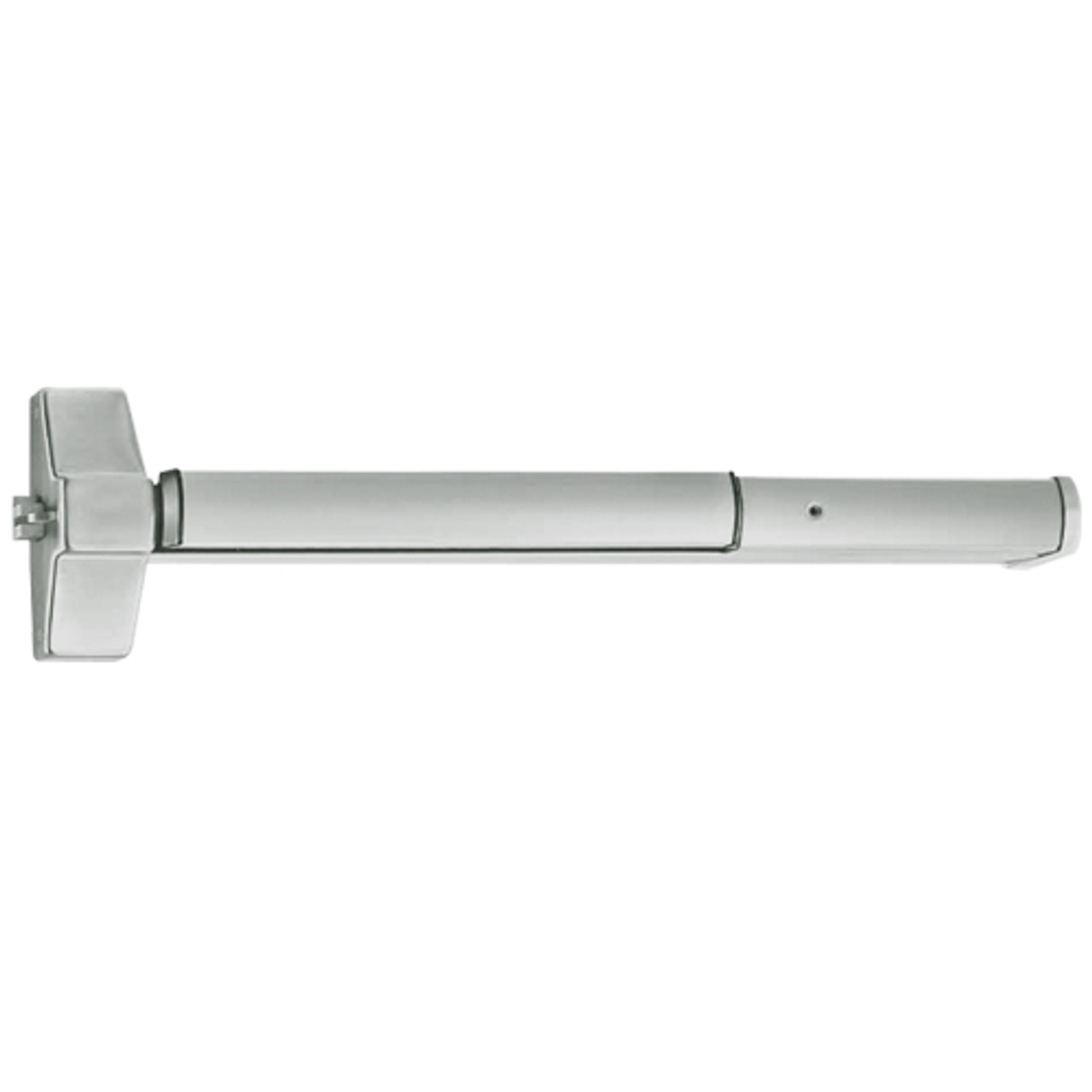

ED5200S-619-W048-MELR-M92 Corbin ED5200 Series Non Fire Rated Exit Device with Motor Latch Retraction and Touchbar Monitoring in Satin Nickel Finish

This device is for a 48" door

The Corbin ED5200S-619-W048-MELR-M92 SecureBolt exit device is designed to meet life safety and security requirements. The ED5200 series exit device is ideal for frequent use applications such as schools, factories, hotels, theaters, office, retail complexes and government buildings. All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. The ED5200 exit device series are certified to the ANSI A156.3, Type 1, Grade 1.

Features and Benefits:

• Satin Nickel finish
• Handing: Non handed
• Cylinder is not included
• Bar Length: Standard: 48" (1219mm) bar fits 36"-48" (914mm-1219mm) door
• Door Thickness: 1-3/4" (44mm) standard
• Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
• Dogging: Standard on panic devices; single-point 1/4 turn hex key dogging.
• Fasteners: Machine screws and wood door fasteners are included
• Strike: Surface-mounted 3/8" (10mm) diameter roller strike
• Stile: Minimum width 4-1/2" (114mm)
• Motor latch retraction is included
• Touchbar monitoring or signaling is included
• Latchbolt: Full 3/4" (19mm) projection, 1" (25mm) wide, positive deadlocking by auxiliary bolt.
