Product Description

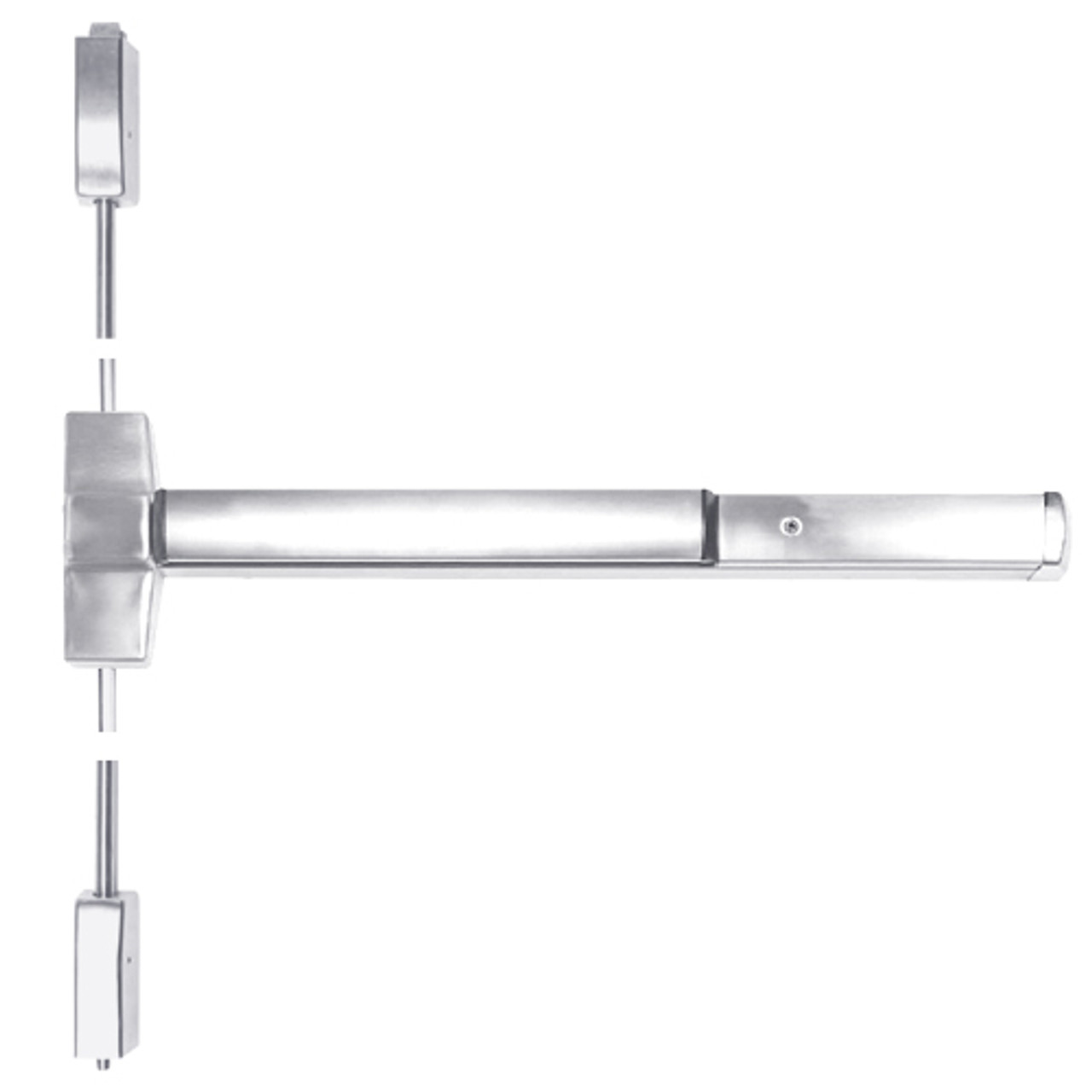

ED5400-625-W048-MELR-M92 Corbin ED5400 Series Non Fire Rated Vertical Rod Exit Device with Motor Latch Retraction and Touchbar Monitoring in Bright Chrome Finish

This device is for a 48" door

The Corbin ED5400-625-W048-MELR-M92 Vertical rod exit device is designed to meet life safety and security requirements. The ED5400 series exit device is ideal for frequent use applications such as schools, factories, hotels, theaters, office, retail complexes and government buildings. All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. The ED5400 exit device series are certified to the ANSI A156.3, Type 1, Grade 1.

Features and Benefits:

• Bright Chrome finish
• Handing: Reversible
• Cylinder is not included
• Bar Length: 48" (1219mm) bar fits 36"-48" (914mm-1219mm) door
• Door Thickness: 1-3/4" (44mm) standard
• Motor latch retraction is included
• Touchbar monitoring or signaling is included
• Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
• Dogging: Standard on panic devices; single-point 1/4 turn hex key dogging.
• Fasteners: Machine screws and wood door fasteners are included
• Strike: Top - adjustable roller strike with positive locking plate and shims; Bottom: flush mounted.
• Stile: Minimum width 4-1/2" (114mm)
• Vertical Rods: 1/2" O.D. tubular brass, bronze or stainless steel with rod guides.
• Latchbolt: Top: 3/4" (19mm) throw, stainless steel pullman-type with automatic deadlatching; Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing.
