Product Description

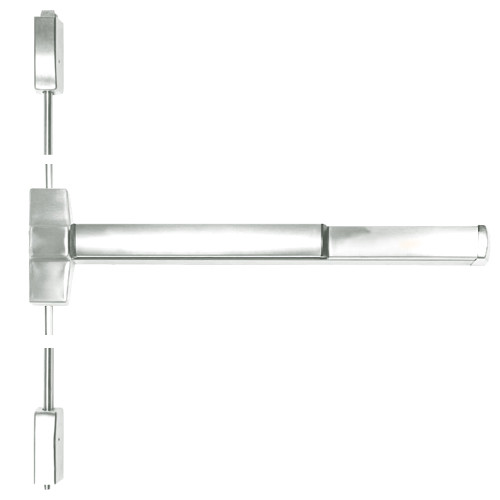

ED5470B-618-W048 Corbin ED5400 Series Fire Rated Vertical Rod Exit Device in Bright Nickel Finish

This device is for a 48" door

The Corbin ED5470B-618-W048 Vertical rod exit device is designed to meet life safety and security requirements. The ED5400 series exit device is ideal for frequent use applications such as schools, factories, hotels, theaters, office, retail complexes and government buildings. All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. The ED5400 exit device series are certified to the ANSI A156.3, Type 1, Grade 1.

Features and Benefits:

• Bright Nickel finish
• Handing: Reversible
• 1-1/2 Hour fire rated
• Cylinder is not included
• Bar Length: 48" (1219mm) bar fits 36"-48" (914mm-1219mm) door
• Door Thickness: 1-3/4" (44mm) standard
• Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
• Dogging feature is not available
• Fasteners: Standard on fire rated devices: sex nuts and bolts
• Strike: Top - surface mounted interlocking; Bottom: flush mounted.
• Stile: Minimum width 4-1/2" (114mm)
• Vertical Rods: 1/2" O.D. tubular brass, bronze or stainless steel with rod guides.
• Latchbolt: Top: 3/4" (19mm) throw, stainless steel pullman-type with automatic deadlatching; Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing.
