Product Description

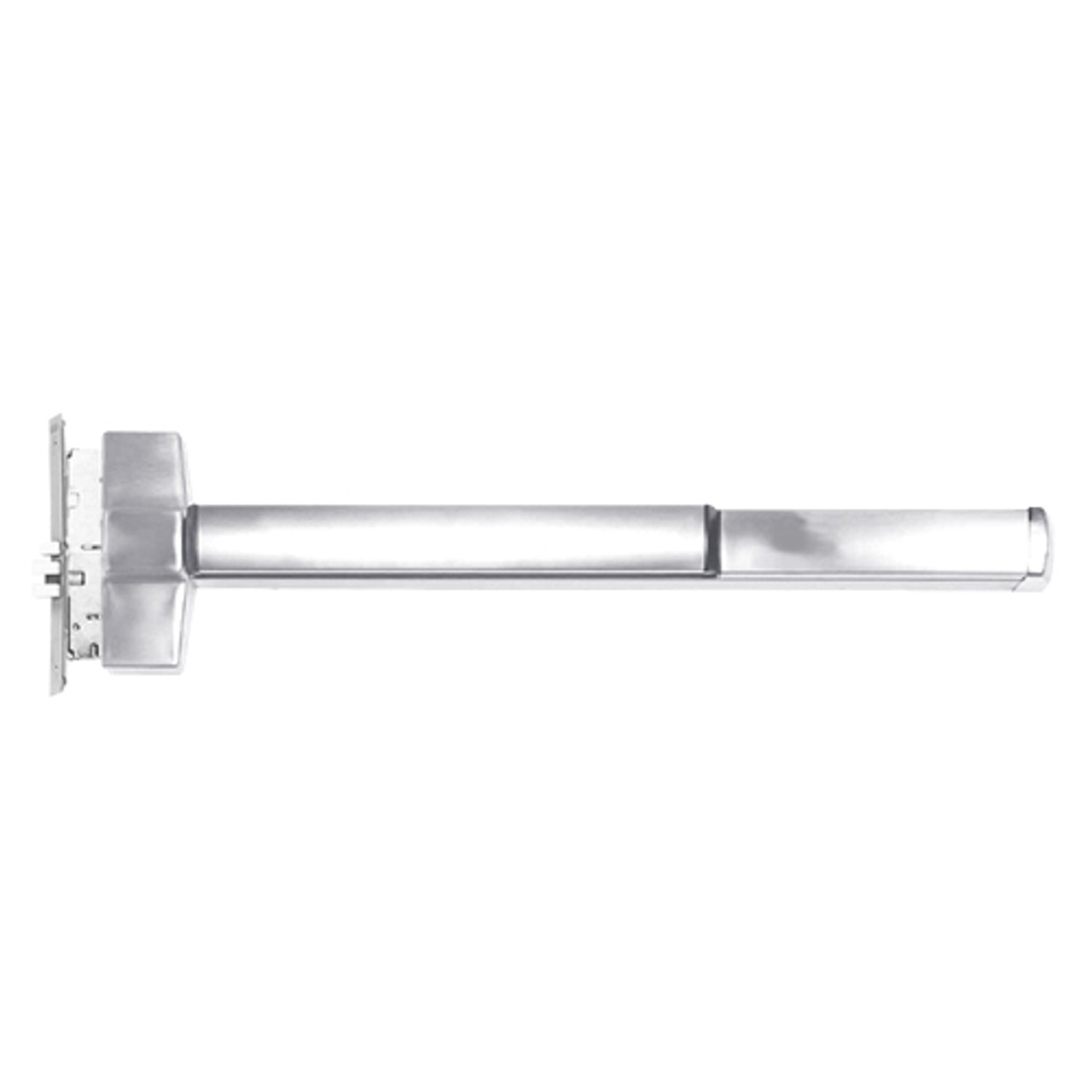

ED5657AL-625-W048-M61-RHR Corbin ED5600 Series Fire Rated Mortise Exit Device with Exit Alarm Device in Bright Chrome Finish

This device is for a 48" door

The Corbin ED5657AL-625-W048-M61-RHR Mortise exit device is designed to meet life safety and security requirements. The ED5600 series exit device is ideal for frequent use applications such as schools, factories, hotels, theaters, office, retail complexes and government buildings. All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. The ED5600 exit device series are certified to the ANSI A156.3, Type 1, Grade 1.

Features and Benefits:

• Bright Chrome finish
• Handing: Right hand reversible
• Cylinder and trim is not included
• Used for the nightlatch and dummy lever trim
• Fire rated device
• Bar Length: 48" (1219mm) bar fits 36"-48" (914mm-1219mm) door
• Door Thickness: 1-3/4" (44mm) standard
• Exit alarm device is included
• Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
• Dogging feature is not available
• Fasteners: Sex nuts and bolts standard
• Strike: Non-handed. ANSI curved lip standard. 4-7/8" x 1-1/4" x 1-1/4" lip to center.
• Stile: Minimum width 4-1/2" (114mm)
• Latchbolt: 2-piece mechanical, 3/4" (19mm) throw, stainless steel with auxiliary deadlocking latch.
