Product Description

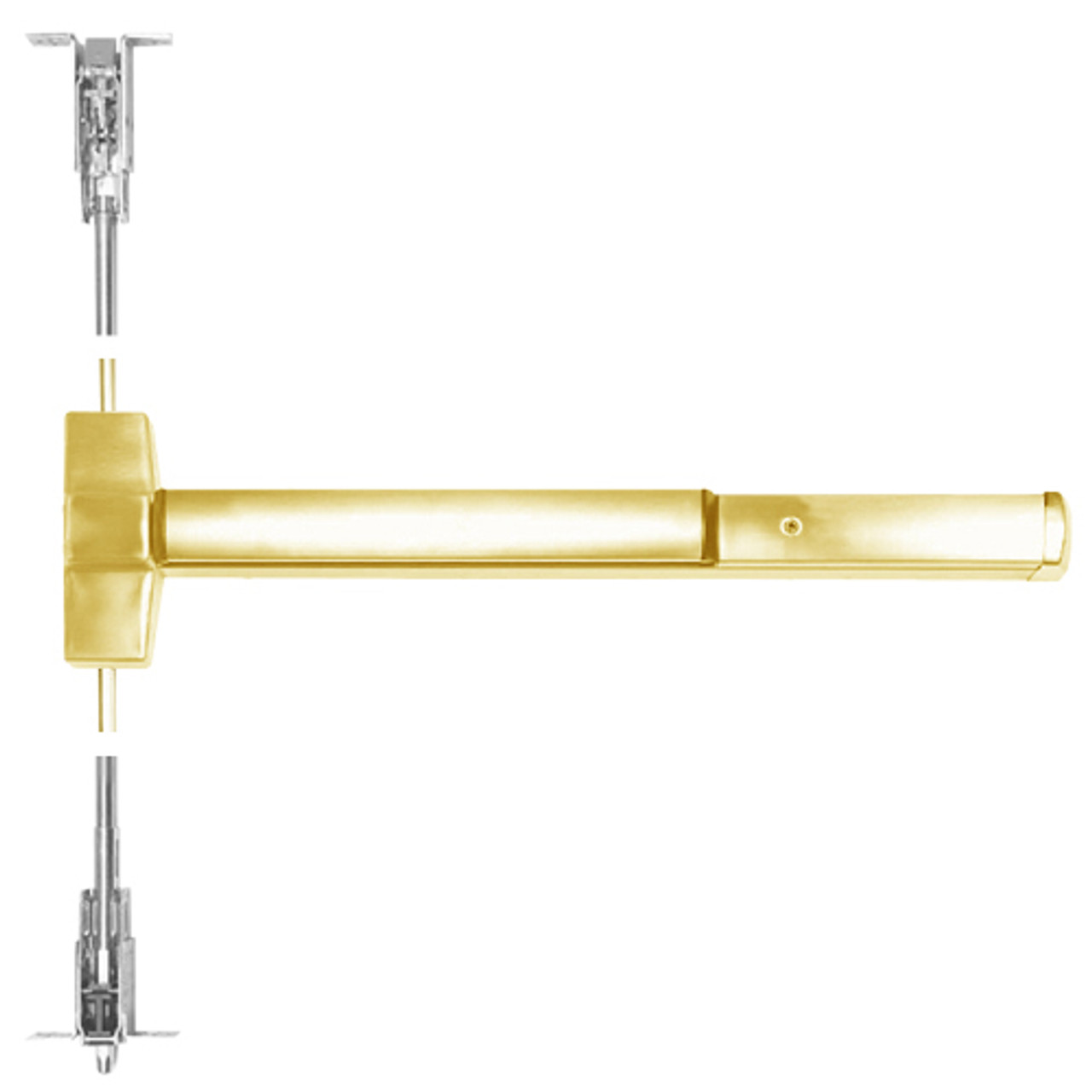

ED5800-605-M52 Corbin ED5800 Series Non Fire Rated Concealed Vertical Rod Device with Cylinder Dogging in Bright Brass Finish

This device is for a 36" door

The Corbin ED5800-605-M52 Concealed vertical rod exit device is designed to meet life safety and security requirements. The ED5800 series exit device is ideal for frequent use applications such as schools, factories, hotels, theaters, office, retail complexes and government buildings. All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. The ED5800 exit device series are certified to the ANSI A156.3, Type 1, Grade 1.

Features and Benefits:

• Bright Brass finish
• Handing: Field reversible
• Cylinder and trim is not included
• Used with metal door only
• Bar Length: Standard: 36" (914mm) bar fits 30"- 36" (762mm-914mm) door.
• Door Thickness: 1-3/4" (44mm) standard
• Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
• Dogging: Cylinder dogging is included
• Fasteners: Machine screws is included
• Strike: Top - roller type; Bottom: flush mounted.
• Stile: Minimum width 4-1/2" (114mm)
• Latchbolt - Top: 3/4" (19mm) throw, stainless steel pullman-type with automatic deadlatching. Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing.
