Product Description

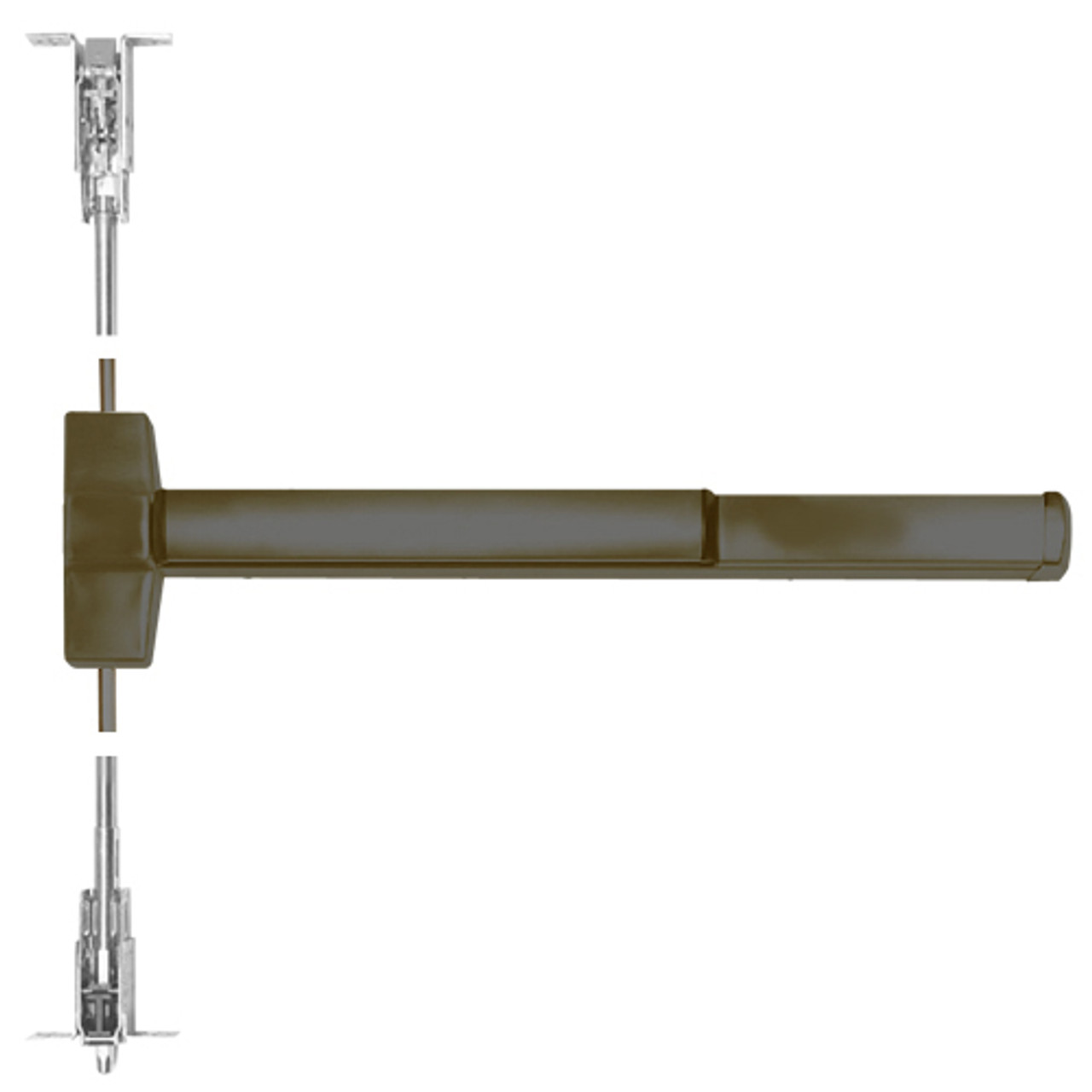

ED5800A-613-W048-MELR-M92 Corbin ED5800 Series Fire Rated Concealed Vertical Rod Device with Motor Latch Retraction and Touchbar Monitoring in Oil Rubbed Bronze Finish

This device is for a 48" door

The Corbin ED5800A-613-W048-MELR-M92 Concealed vertical rod exit device is designed to meet life safety and security requirements. The ED5800 series exit device is ideal for frequent use applications such as schools, factories, hotels, theaters, office, retail complexes and government buildings. All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. The ED5800 exit device series are certified to the ANSI A156.3, Type 1, Grade 1.

Features and Benefits:

• Oil Rubbed Bronze finish
• Handing: Field reversible
• Fire rated device
• Cylinder and trim is not included
• Used with metal door only
• Motor latch retraction is included
• Touchbar monitoring is included
• Bar Length: 48" (1219mm) bar fits 36"-48" (914mm-1219mm) door
• Door Thickness: 1-3/4" (44mm) standard
• Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
• Dogging feature is not available
• Fasteners: Sex nuts and bolts are included
• Strike: Top - roller type; Bottom: flush mounted.
• Stile: Minimum width 4-1/2" (114mm)
• Latchbolt - Top: 3/4" (19mm) throw, stainless steel pullman-type with automatic deadlatching. Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing.
