Product Description

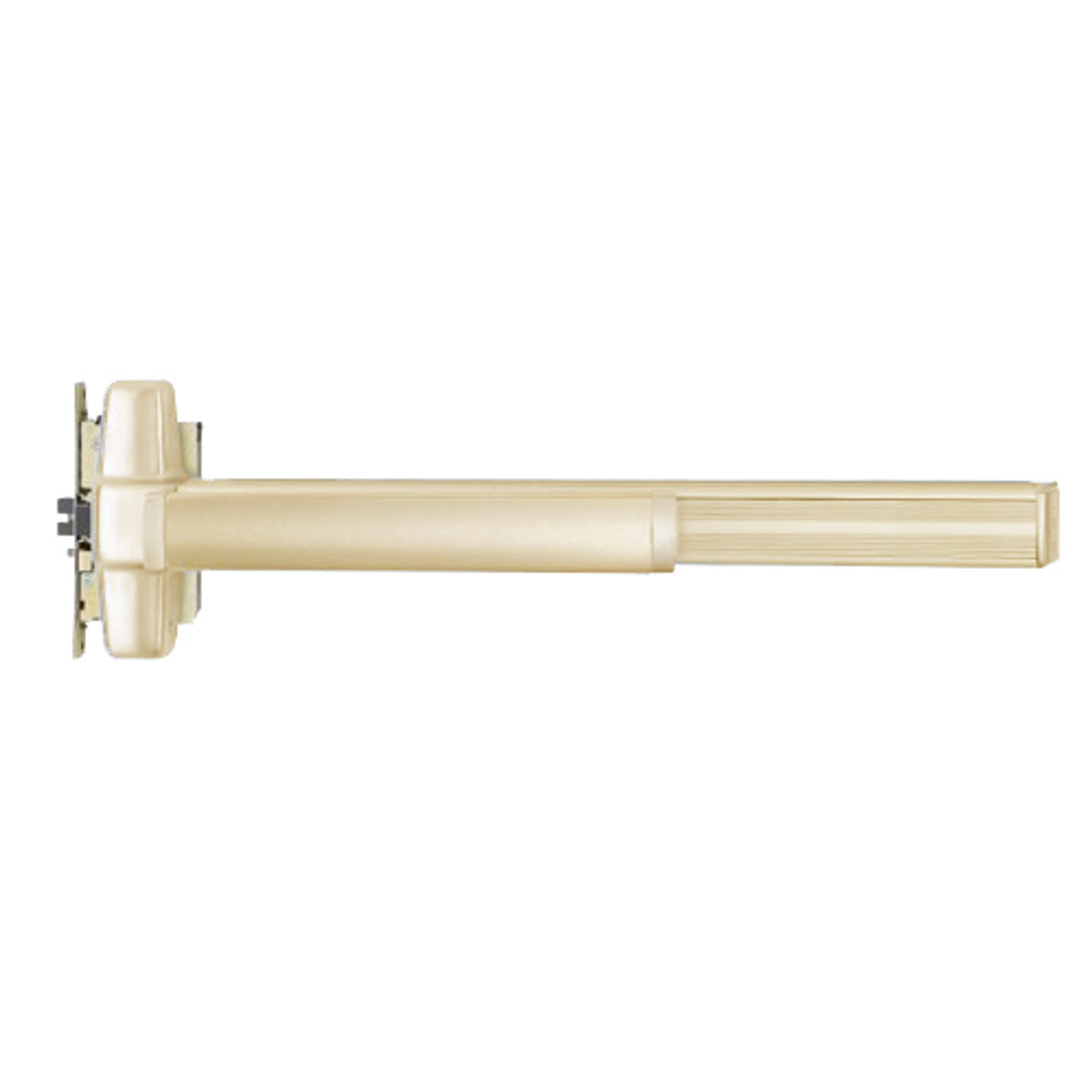

EL9875EO-US4-3 Von Duprin 9875 Series Non Fire Rated Mortise Lock Exit Device with Electric Latch Retraction in Satin Brass Finish

This device is for a 36" door

The Von Duprin EL9875EO-US4-3 series of mortise lock exit device for all types of single and double doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The EL9875 mortise lock exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected. The 7500 mortise lock is equipped with a 3/4" (19mm) anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.

The 9875 series has a "smooth mechanism case"

Features and Benefits:

• Satin Brass Finish
• ANSI Function: 01
• Includes No Trim
• Cylinder and sex bolts are not included
• Device lengths: 3 feet (914mm) i.e 3' device for 2' 4" - 3' door (711mm to 914 mm) door size
• Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal or wood doors
• Non-handed operation provides greater flexibility
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All EL9875 series exit devices are UL listed for panic hardware and are certified to ANSI A156.3, 2008 Grade1
• Latch Bolt: Anti-friction 3/4" (19mm) field reversible latch bolt
• Strike: 575 dull black strike is included as always
• Electric latch retraction: Enables remote unlatching
• Hex key dogging feature standard
• Requires 1-1/4" mortise cylinder with inverted cam
• Device centerline from finished floor: 39-13/16" (1011 mm) and 39-11/16" (1008 mm) with mullion
