  • EL9875K-US4-4 Von Duprin Exit Device in Satin Brass
  • EL9875K-US4-4 Von Duprin Mortise Lock and Strike

    • EL9875K-US4-4 Von Duprin 9875 Series with 996K-M Knob Mortise Lock Exit Device with Electric Latch Retraction in Satin Brass

    $4,789.00 $3,419.35
    (You save $1,369.65)
    (No reviews yet) Write a Review
    SKU:
    EL9875K-US4-4
    Condition:
    New
    Door Width:
    4 Feet
    Color:
    Satin Brass
    Fire Rated:
    Non Fire Rated
    Trim:
    K - Knob
    Handing:
    Non Handed

    Product Description

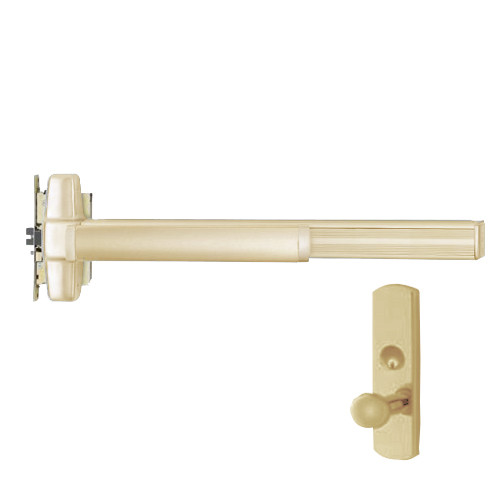

    EL9875K-US4-4 Von Duprin 9875 Series with 996K-M Knob Non Fire Rated Mortise Lock Exit Device with Electric Latch Retraction in Satin Brass Finish

    This device is for a 48" door

    The Von Duprin EL9875K-US4-4 series of mortise lock exit device for all types of single and double doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The EL9875 mortise lock exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected. The 7500 mortise lock is equipped with a 3/4" (19mm) anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.

    The 9875 series has a "smooth mechanism case"

    Features and Benefits:

    • Satin Brass Finish
    • Knob Trim - Key Locks and Unlocks
    • ANSI Function: 11 or 12 field selectable
    • Cylinder and sex bolts are not included
    • Device lengths: 4 feet (1219mm) i.e 4' device for 2' 10" - 4' door (864 mm to 1219 mm) door size
    • Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal or wood doors
    • Non-handed operation provides greater flexibility
    • Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
    • All EL9875 series exit devices are UL listed for panic hardware
    • Latch Bolt: Anti-friction 3/4" (19mm) field reversible latch bolt
    • Strike: 575 dull black strike is included as always
    • Electric latch retraction: Enables remote unlatching
    • Hex key dogging feature standard
    • Requires 1-1/4" mortise cylinder with inverted cam
    • Includes 996K-M standard trim ANSI/BHMA A156.3 - (2008) Grade-1 certified
    • Cylinder must be ordered separately
    • Device centerline from finished floor: 39-13/16" (1011 mm) and 39-11/16" (1008 mm) with mullion

    Warranty Information

    3 years limited manufacturer's warranty
