Product Description

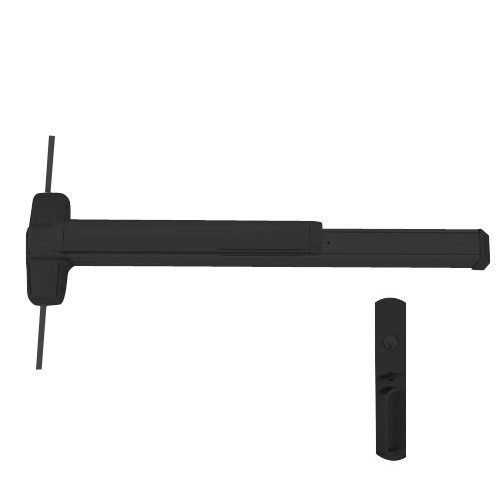

EL9948TP-US10-3 Von Duprin 9948 Series with 990TP Thumbpiece Non Fire Rated Vertical Rod Exit Device with Electric Latch Retraction in Satin Bronze Finish

This device is for a 36" door

The Von Duprin 9948TP-US10-3 series of exit device for all types of single and double metal doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 9948 vertical rod exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected. Touch bar exit devices are mounted on the egress side of the door. These devices feature an enclosed mechanism case with a push bar area to allow egress.

The 9948 series has a "grooved mechanism case"

Features and Benefits:

• Satin Bronze Finish
• Thumbpiece Trim - Key locks and unlocks
• ANSI Function: 11 or 12 field selectable
• Cylinder and sex bolts are not included
• Electric latch retraction: Enables remote unlatching
• Device lengths: 3 feet (914mm) i.e 3' device for 2' 4" - 3' door (711mm to 914 mm) door size
• Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal doors
• Non-handed operation provides greater flexibility
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 9948 series exit devices are UL listed for panic hardware
• Latch Bolt: Deadlocking top bolt, 3/4" (19mm) throw and bottom bolt, 1-1/2 (38mm) throw
• Strike: Top- 338 unfinished and Bottom- 385A unfinished strikes included as always
• Hex key dogging feature standard
• Includes 990TP standard trim ANSI/BHMA A156.3 (2008) Grade-1 certified
• Device centerline from finished floor: 39-5/8" (1006 mm) standard and adjustable from 35-5/8" (905mm) to 49-5/8" (1260mm)
