Product Description

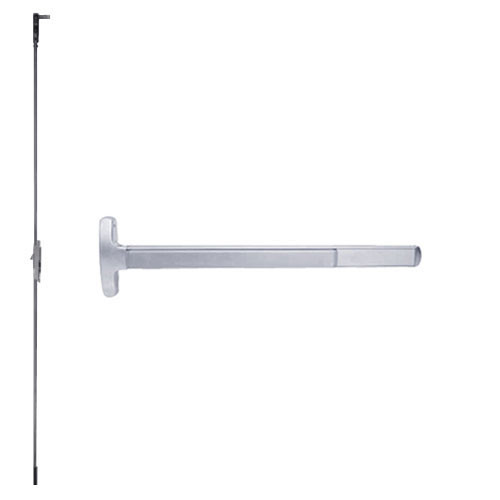

F-24-C-EO-US26-4 Falcon 24 Series Exit Only Fire Rated Concealed Vertical Rod Device in Polished Chrome Finish

This device is for a 48" door

The Falcon F-24-C-EO-US26-4 concealed vertical rod device is combine the safety of a fire-rated device with the clean aesthetics that come with a narrow stile and concealed vertical rod installation. The Falcon F-24-C Series concealed vertical rod device offers great value, clean styling, a versatile narrow stile design and provide security of two point latching. This F-24-C Series are certified to ANSI A156.3-2001 Grade 1 standard.

Features and Benefits:

• Polished Chrome finish
• Cylinders are not included
• Handing: Non handed
• Includes no trim
• Latchbolt: Top stainless steel, 3/4" throw. Bottom bolt 1/2" throw.
• Latch retention hold standard with top latch
• Device lengths: 4 feet (48 inch)
• Fire rated hardware
• Doors: 1-3/4" thick metal door
• Projections: 2-3/4" maximum
• Deadlocking latchbolt: Standard with top latch
• Fasteners: All mounting screws are concealed. All machine screws standard.
• Strike: 4188 mortised top and 2130 flush strike bottom (Included)
• Vertical rods: Furnished to length based on a 40" horizontal CL from finished floor and a 7'0" door.
