Product Description

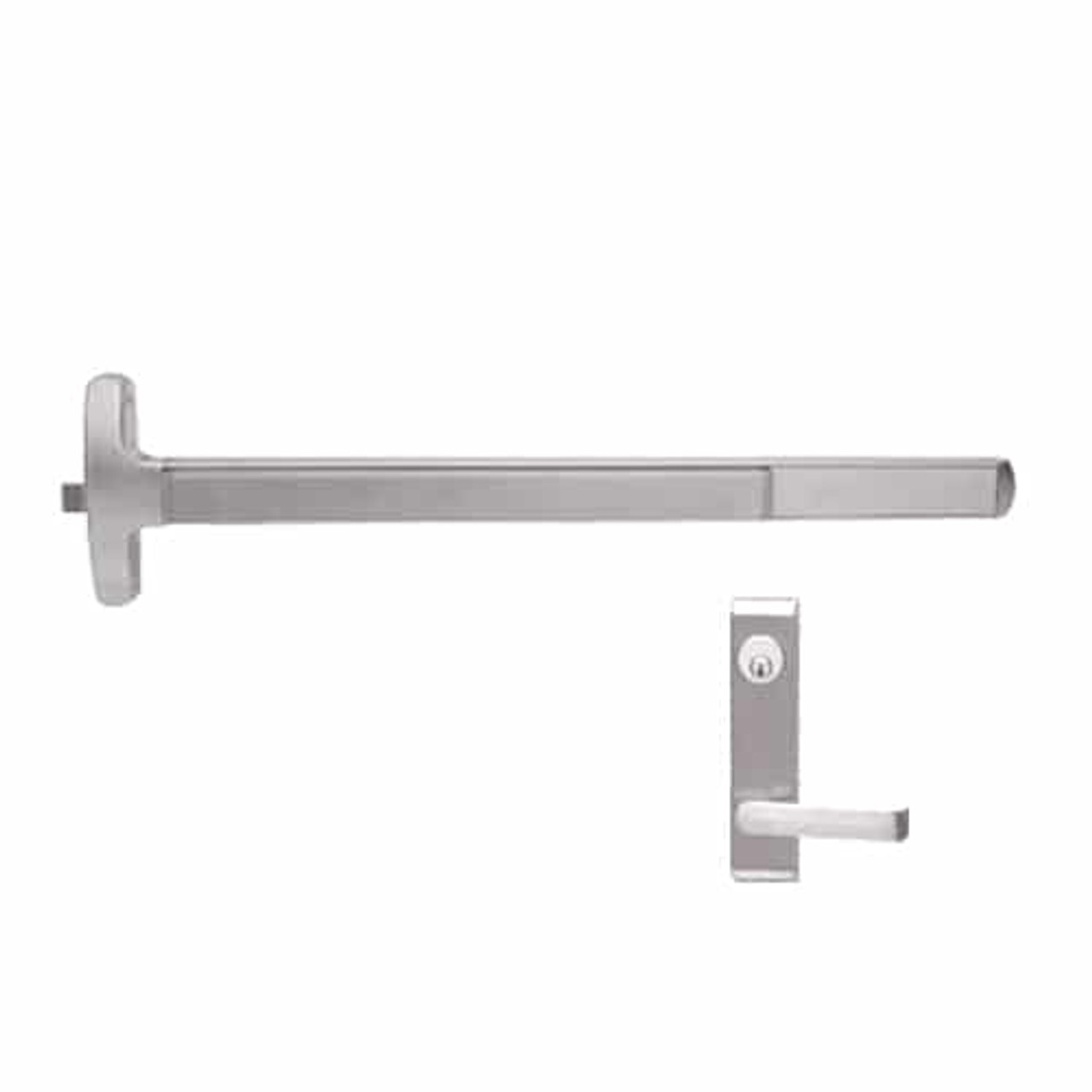

F-24-R-L-NL-DANE-US28-4-RHR Falcon 24 Series Fire Rated Rim Exit Device 712L Dane Lever Trim with Night Latch in Anodized Aluminum Finish

This device is for a 48" door

The Falcon F-24-R-L-NL-DANE-US28-4-RHR series of exit device for all types of single and double door application. The Falcon F-24 Series exit devices combines sleek styling and durability with the protection of a fire-rated device. The Falcon F-24-R Series narrow stile design allows for installation versatility with a single-point and rim type latch. This F-24-R Series are certified to ANSI A156.3-2001 grade 1 standards.

Features and Benefits:

• Anodized Aluminum finish
• Cylinders are not included
• Handing: Right hand reversible
• 712L-NL Dane lever trim with night latch
• Latchbolt: Stainless steel, 3/4" throw
• Device lengths: 4 feet (48 inch)
• Doors: 1-3/4" thick, wood or metal door
• Projections: 2-3/4" maximum
• Strike: 299F strike standard
• Fire rated hardware
• Mounting height: 40" from CL to finished floor
• Fasteners: All mounting screws are concealed
• Center case and working parts: Investment-cast ferrous alloy with heavy wrought and sintered metal parts.
