Product Description

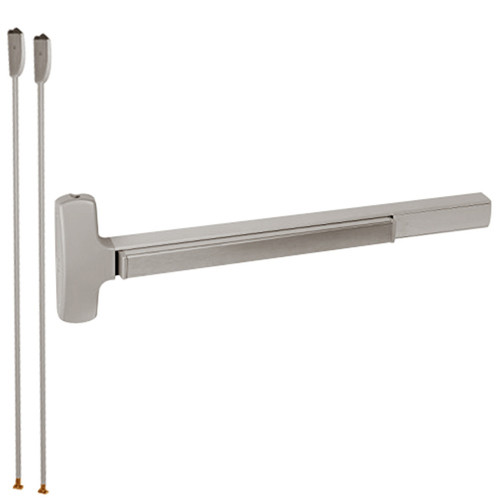

F-25-V-EO-US32D-4 Falcon 25 Series Exit Only Fire Rated Surface Vertical Rod Devices in Satin Stainless Steel Finish

This device is for a 48" door

The Falcon F-25-V-EO-US32D-4 fire rated surface vertical rod device is used for the wood and metal door applications. When we talk about strength, durability and plus fire rated performance, the F-25-V series is the complete package. The Falcon F-25-V Series delivers with a surface-applied vertical rod devices that includes a sleek touch bar design with top latch and deadlocking standard. This series are certified to ANSI A156.3-2001 Grade 1.

Features and Benefits:

• Satin Stainless Steel finish
• Cylinders are not included
• Handing: Field reversible
• Includes no trim
• Latchbolt: Top stainless steel 3/4" throw. Bottom bolt, 1/2" throw
• Device lengths: 4 feet (48 inch)
• Doors: 1-3/4" thick, wood or metal
• Projections: 2-3/4" maximum
• Strike: 3788 top strike is surface applied. 2130 bottom strike is mortised into floor.
• Deadlocking latchbolt standard in top latch
• Fasteners: All mounting screws are concealed. All machine screws (AMS) standard.
• Fire rated hardware
• UL listed: "A" Label (3 hr) - 8' x 10' double egress; 90 min. same egress - 8' x 10' Wood door: 20 min. 8' x 10'; 90 min. 8' x 9'.
