Product Description

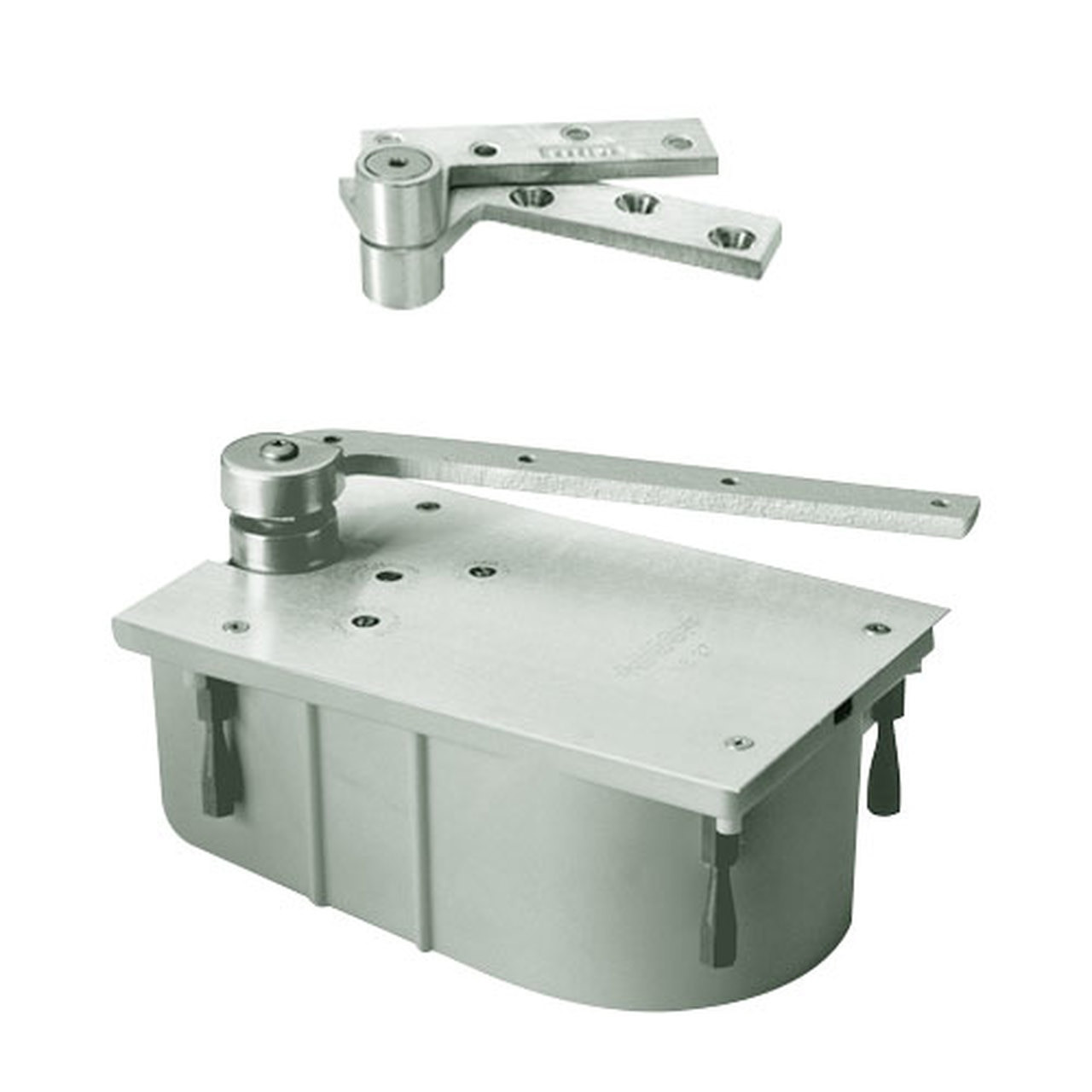

F127-105N-LCC-RH-619 Rixson 27 Series Fire Rated Heavy Duty 3/4" Offset Hung Floor Closer in Satin Nickel Finish
The Rixson F127-105N-LCC-RH-619 provides the best mechanical means to support and control a door. It is designed to work with physics rules to provide long-term performance and reliability. The weight of the door is supported by the bottom arm and floor. This is ideal for single acting exterior or interior doors. These 127 series heavy-duty floor closers are certified to ANSI/BHMA A156.4 standards.
Recommended for applications where vertical movement of the door at installation is not possible, such as a door inset in a deep reveal or with no ceiling clearance.
Features and Benefits:
- Satin Nickel finish
- Mounting Style: 3/4" Offset
- Handing: Right handed, Single acting
- Non hold-open
- Built-in positive dead stop prevents door from swinging 105 degree
- Weight to 250 lbs.
- Door Width up to 4'0" (1219mm)
- Cement case is not included
- Standard top pivot: F180 included
- Floor plate is not included
- Heavy duty offset hung floor closers
- Fire rated
- Furnished with wood and machine screws
Note: Door size & weight guidelines are determined using the appropriate number of intermediate pivots
