Product Description

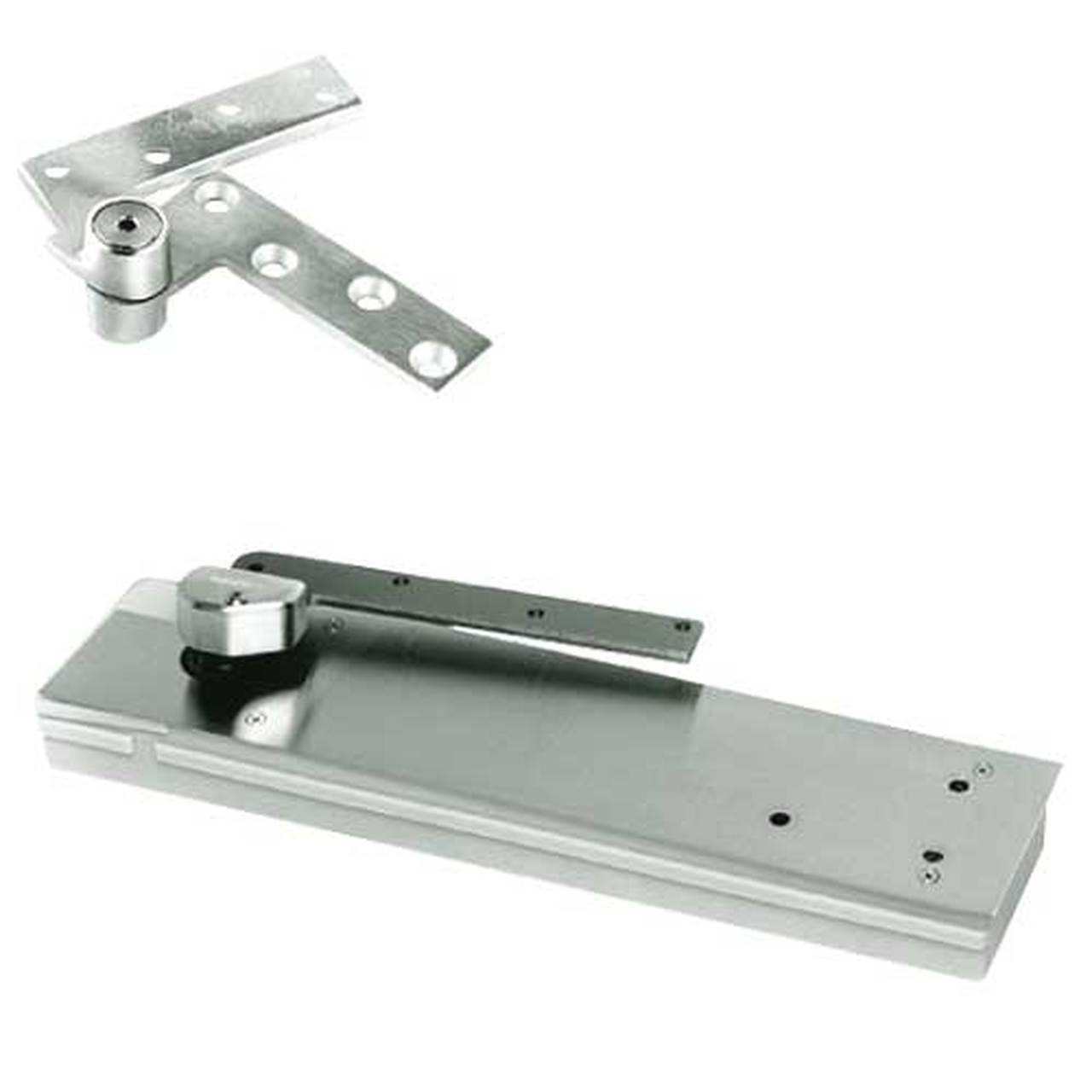

FHM5103NBC-LCC-RH-618 Rixson HM51 Series 3/4" Offset Hung Shallow Depth Floor Closers in Bright Nickel Finish

The Rixson FHM5103NBC-LCC-RH-618 provides the best mechanical means to support and control a door. It is designed to work with physics rules to provide long-term performance and reliability. This is ideal for single acting interior doors. Not recommended for high-traffic or exterior doors. These HM51 Series shallow depth floor closers are certified to ANSI/BHMA A156.4 standards. Designed for stock hollow metal doors and frames with standard weight 4-1/2" hinge preparation.

Features and Benefits:

• Bright Nickel finish
• 3/4" offset hung
• Interior Doors
• Handing: Right handed, Single acting
• Non hold-open
• Includes three special steel 4-1/2" ball bearing standard weight hinges with 3/4" offset.
• Door Width: 36" (914mm)
• Cement case is not included
• Interchangeable spindle adapters
• Floor plate is inluded
• Furnished with 1/2 wood and full machine screws
• Weight to 250 lbs
• Surface mounted bottom arm with thru bolts
• Separate and independent valves for closing speed, latch speed and backcheck
• Fire rated
