Product Description

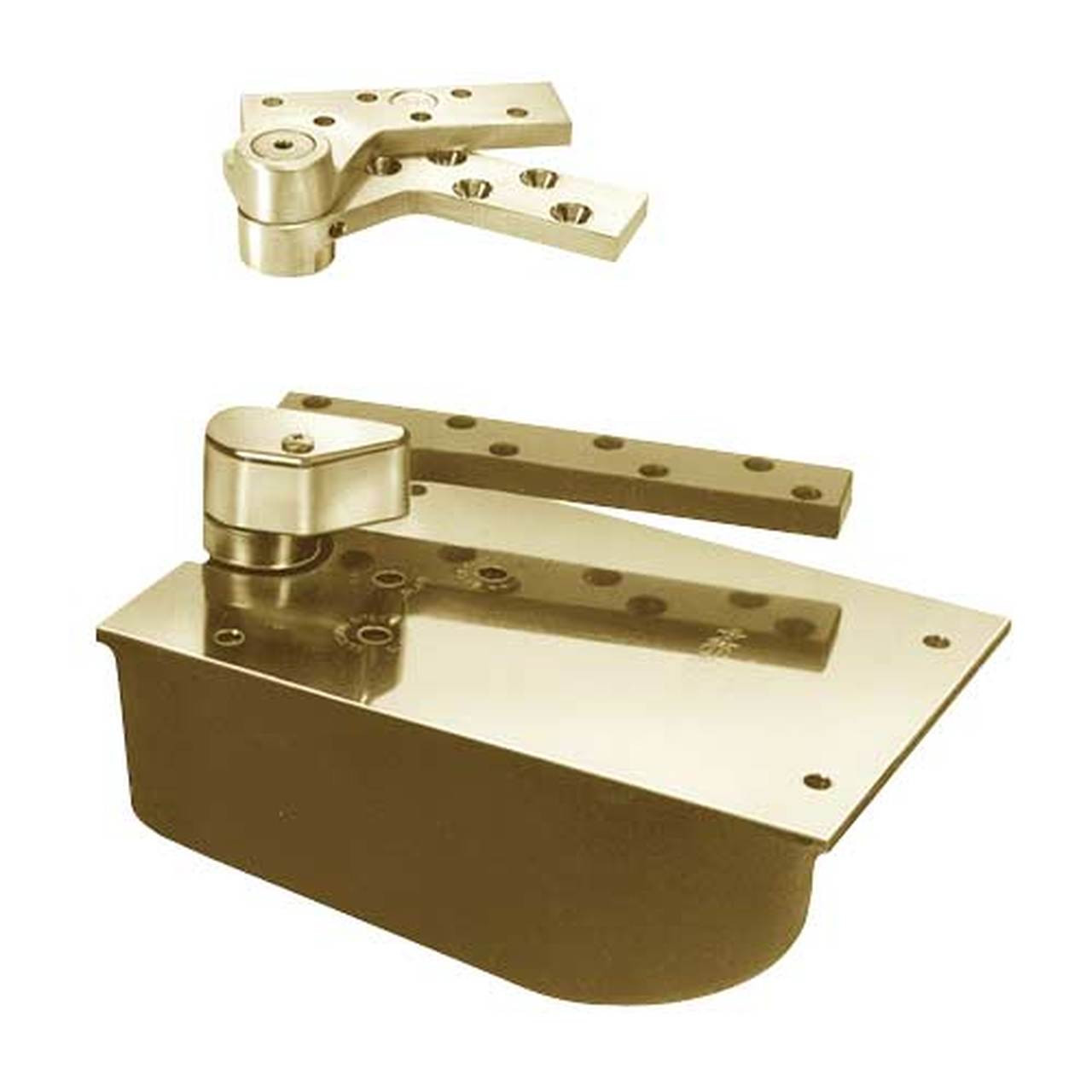

FL27-85N-LFP-CWF-RH-606 Rixson 27 Series Extra Heavy Duty Lead Lined Offset Floor Closer in Satin Brass Finish

The Rixson FL27-85N-LFP-CWF-RH-606 provides the best mechanical means to support and control a door. It is designed to work with physics rules to provide long-term performance and reliability. The weight of the door is supported by the bottom arm and floor. This is ideal for single acting exterior or interior doors. These 27 series heavy-duty floor closers are certified to ANSI/BHMA A156.4 standards.

Cold Weather Fluid: Cold weather fluid should be specified for exterior doors in consistently cold climates under 32° F for weeks at a time. The hydraulic fluid is of a lower viscosity to prevent sluggish closing.

Features and Benefits:

• Satin Brass finish
• Mounting Style: 3/4" Offset
• Handing: Right handed, Single acting
• Non hold-open
• Built-in positive dead stop prevents door from swinging 85 degree
• Weight to 1500 lbs.
• Door Width up to 4'0" (1219mm)
• Cast iron cement case
• Standard top pivot: FL180 included
• Floor plate is not included
• Extra heavy duty offset hung floor closers
• Fire rated

Note: Door size & weight guidelines are determined using the appropriate number of intermediate pivots
