Product Description

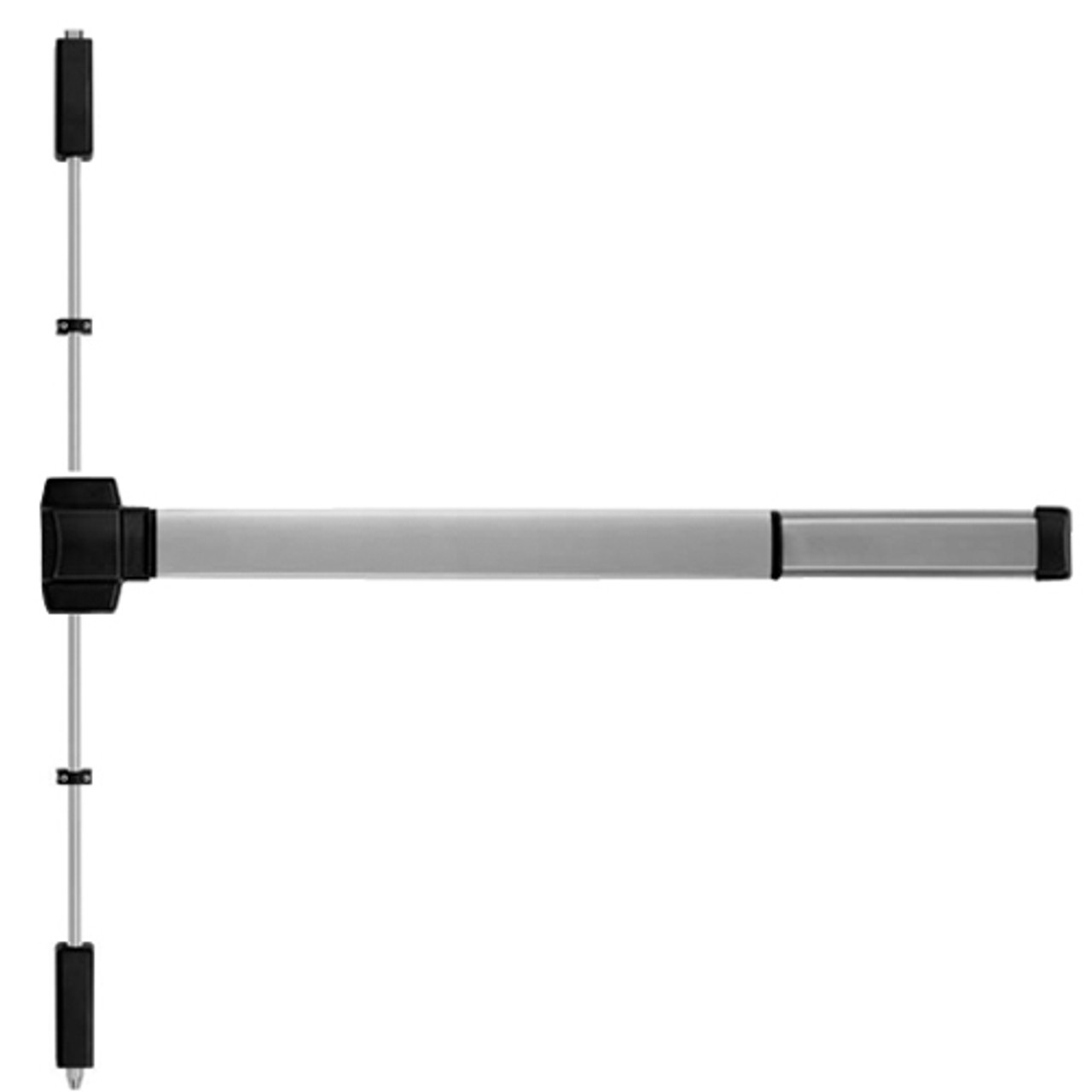

FL5201LBR-689-36 PHI 5000 Series Fire Rated Reliant Surface Vertical Rod Device Prepped for Cover Plate in Aluminum Finish
This device is for a 36" door
The PHI FL5201LBR-689-36 Reliant 5000 series exit device is used for all types of single and double door applications and represents the ultimate in safety, security and simplicity. The Reliant 5000 Series is the Exit Device of choice when an economical and reliable exit device is required. The chassis is constructed of stainless steel and covers the standard type 161 door preparation. The 5200 series is ideal for the retail, hospitality, mixed-used, multifamily and commercial office spaces. The Apex 5200 Series exit devices are UL listed for panic and fire hardware and are certify to ANSI A156.3 Grade 1.
Features and Benefits:
- Aluminum finish
- Handing: Non handed
- UL listed
- Fire rated device
- Less bottom rod is included
- Door Size: 36" - 2'-7" to 3' door width
- Cylinder and trim is not included
- Prepped for exit only, cover plate
- Top Latchbolt: Stainless Steel, Deadlocking, 3/4" throw.
- Bottom bolt: Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.
- Strike: top - S300 strike, bottom strike - S460 are included
- Dogging feature is not available
- Touchbar height: 40-5/16"- from floor standard
