Product Description

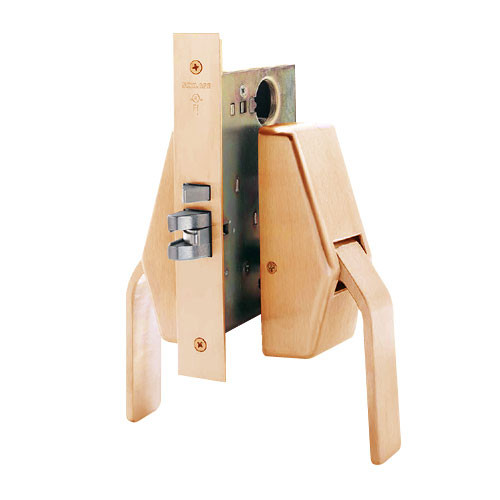

HL6-9485-612 Glynn Johnson HL6 Series Hotel Lock Thumbturn Function Push and Pull latch with Mortise Lock in Satin Bronze Finish
The Glynn Johnson HL6-9485-612 HL6 series is designed for use with Schlage L Series heavy-duty mortise lock and the unit combines the features and convenience of the HL6 push and pull operation with the durability of the heavy-duty mortise lock. The sleek design has a short throw angle, allowing the door to be opened with an easy push or pull action, even when hands are not free.
Latchbolt retracted by key outside or by handle inside. Outside handle always fixed. Deadbolt thrown or retracted by inside thumbturn. When deadbolt is thrown, all keys become inoperative except emergency or display keys. Activating handle retracts both deadbolt and latchbolt simultaneously. Auxiliary latch deadlocks latchbolt when door is closed.
Features and Benefits:
- Satin Bronze finish
- Non handed
- Backset: 2-3/4"
- ASA strike furnished
- Hotel lock thumbturn
- Cylinders are not included
- Schlage L-Series Lock Included
- Variable mounting positions
- UL listed for all single labeled metal or wood doors
- Handles must be mounted in the horizontal position
- On functions with cylinders, handles must be mounted in down position on key side or horizontally on both sides
