Product Description

HWBB74545-652 Don Jo Full Mortise Ball Bearing Hinge in Satin Chrome Finish

The Don Jo HWBB74545-652 Full Mortise Ball Bearing Hinge communicates an unmistakable message of awesome quality and high strength while maintaining a beautiful elegance that is usually not associated with door hardware. The HWBB74545-652 series is available in size of 4-1/2 x 4-1/2" (inches).

Features and Benefits:

• Satin Chrome Finish
• Steel material

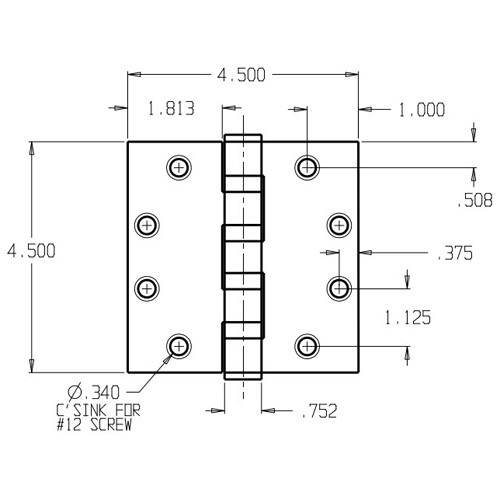

• Dimensions: 4-1/2 x 4-1/2"
• Guage: 0.180
• 8 ea. FHMS 12-24 x 1/2 fastener - per hinge
• 8 ea. FHWS 12 x 1 1/4 fastener - per hinge
• All heavy duty hinges come with non-removable pins as standard (NRP)
• 4 ball Bearing Hinges
• 5 knuckle
• For heavy doors
• High frequency
• All Hinges are ANSI Template
• ANSI A8111 approved hardware
• One year limited manufacturer's warranty is included
