Product Description

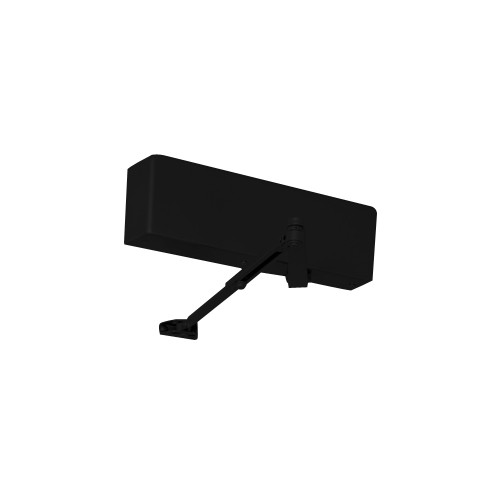

J7500-693 Norton 7500 Series Non-Hold Open Institutional Door Closer with Top Jamb Only Reveals 2-3/4 to 7 inch to 150 Degree in Black Finish

The Norton J7500-693 non hold open door closer offers the ideal combination of superior performance, strength and quality. The 7500 Series door closer is the ideal for interior or exterior doors in facilities that demand reliability. This series are certified to ANSI/BHMA A156.4, Grade 1.

Features and Benefits:

• Black finish
• Handing: Non handed
• Non hold open
• 7786 Backplate is included
• Rack-and-pinion design
• Cast aluminum body
• Staked valves
• Adjustable spring sizes 1-6
• 2-3/16" (56mm) projection
• 1-1/2" (38mm) diameter piston
• Self-drilling screws
• Slide Tracks: push or pull side mounting
• Exceeds 25 million cycles (witnessed and verified by UL)
• Backcheck positioning valve
• Top jamb only, reveals 2-3/4" to 7" (to 150 degree)
