Product Description

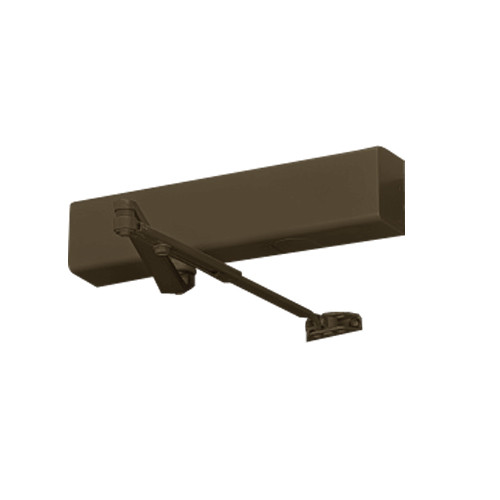

J8501H-694 Norton 8000 Series Full Cover Hold Open Door Closers with Top Jamb Reveal 2-3/4 to 6-3/4 inch in Medium Amber Finish

The Norton J8501H-694 Series door closer is used for office and commercial interior and exterior doors. The 8000 Series Door Closers offer the ideal combination of appearance, unwavering quality and durability. The medium-duty closer able to meet the many configurations that occur in outfitting a door closer. This series are certified to ANSI/BHMA A156.4, Grade 1.

Features and Benefits:

• Medium Amber finish
• Hold open
• Handing: Non handed
• Staked valves
• Cast aluminum body
• Rack-and-pinion design
• Exceeds 15 million cycles
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Adjustable spring sizes 1 through 6
• Full cover is included
• This product is manufactured in an ISO 9001 facility
• Door Thickness: 1-3/4" - 2-1/4" (44- 57mm) thick doors

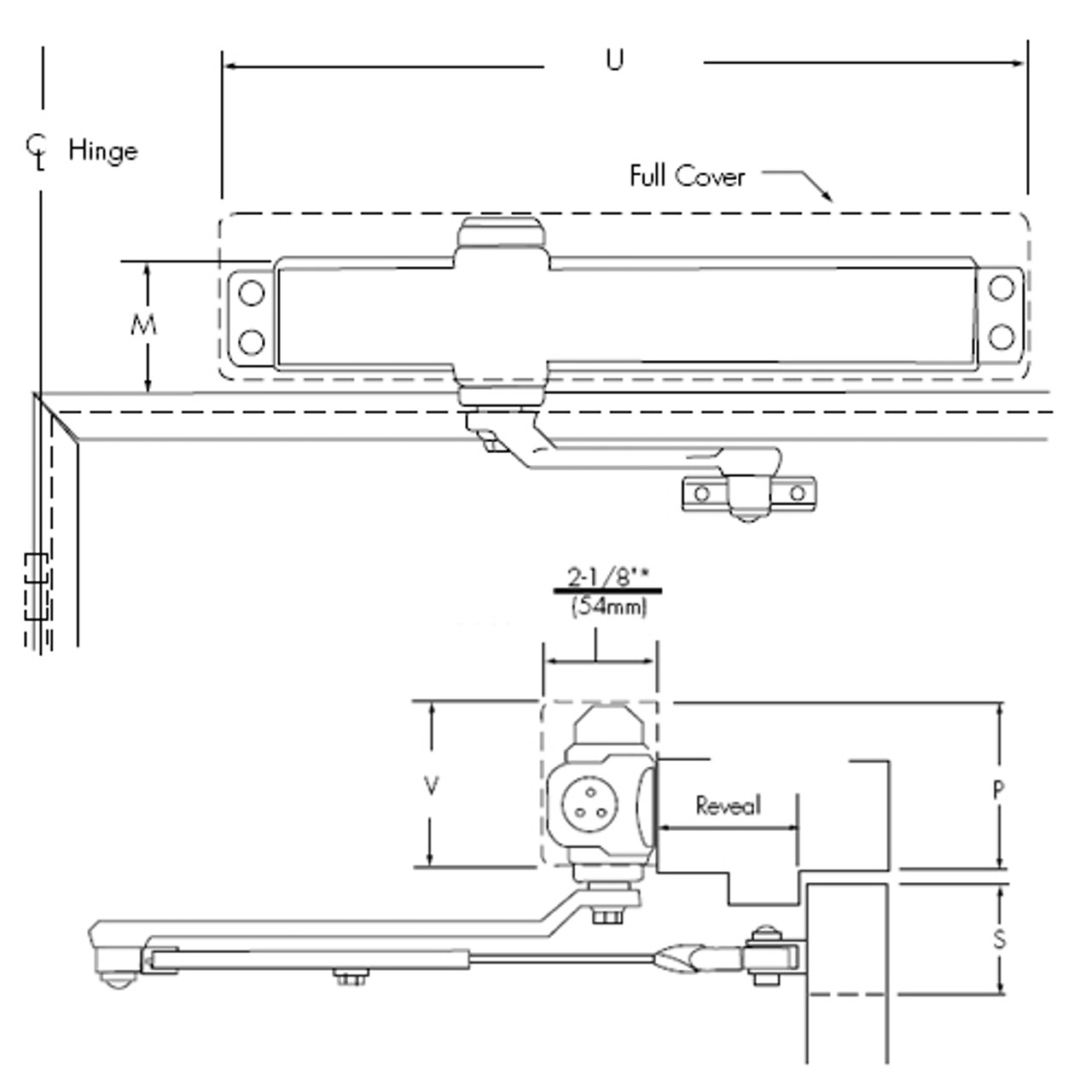

• Top jamb, Reveals 2-3/4" to 6-3/4"
