Product Description

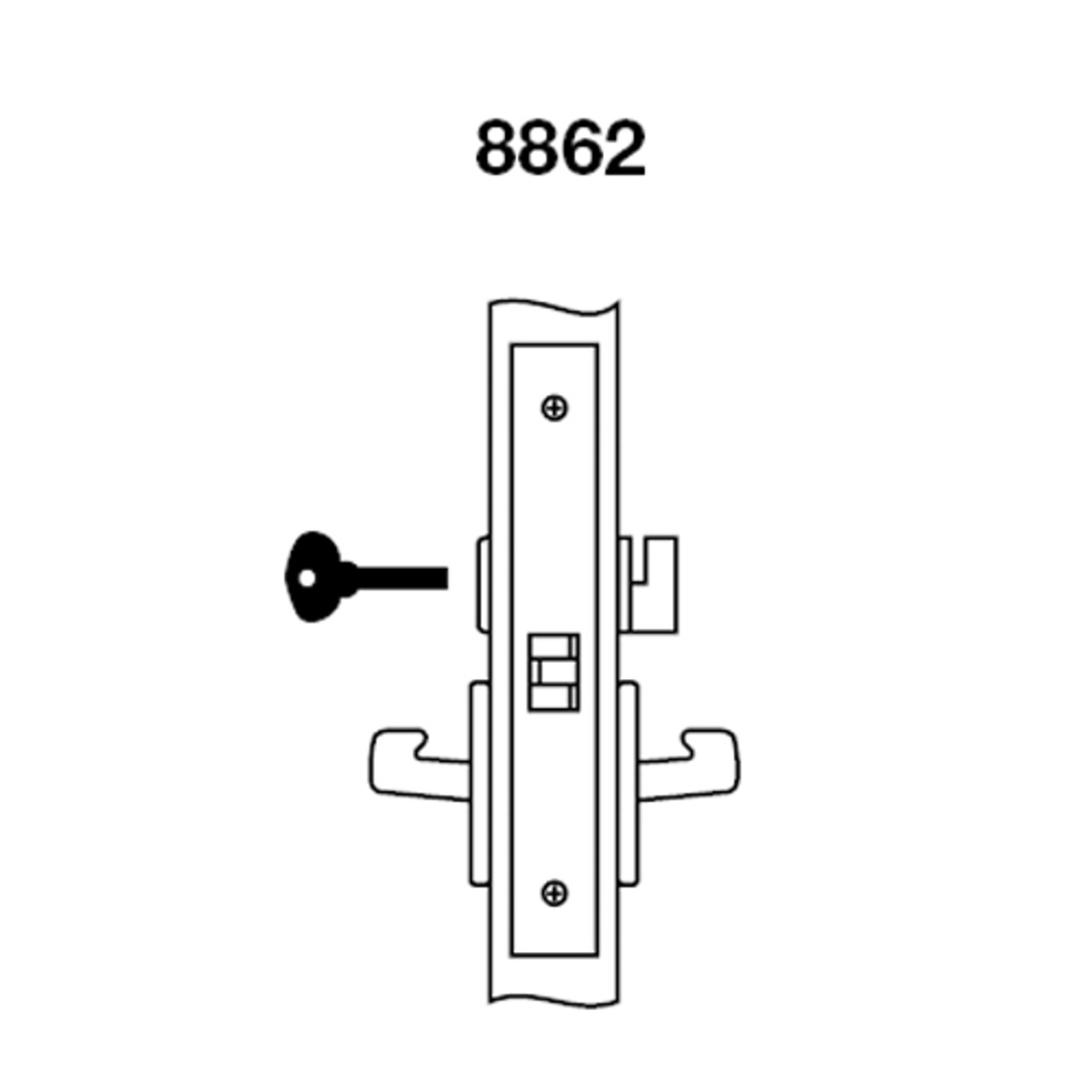

JNR8862FL-630 Yale 8800FL Series Non-Keyed Mortise Bathroom Locks with Jefferson Lever in Satin Stainless Steel Finish
The Yale JNR8862FL-630 mortise lock series is designed for uncompromising strength and durability in a range of commercial applications. The 8800 Series mortise locks offer a new measure of security to the door. The 8800 mortise lock series are certified to the ANSI/BHMA A156.13, Series 1000, Operational Grade 1.
Bathroom lock: Latchbolt retracted by knob/lever either side except when outside lever is locked by thumbturn. Operating inside lever retracts the latchbolt, automatically unlocking outside lever. Outside emergency release unlocks outside lever. E203 emergency key supplied. Automatically unlocks when door latches.
Features and Benefits:
- Satin Stainless Steel finish

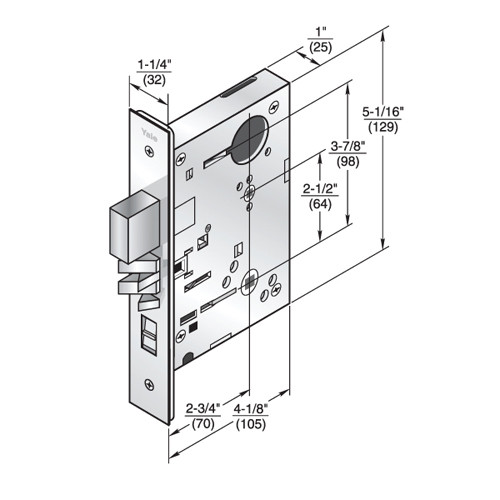

- Armor front: 8" x 1-1/4"
- Backset: 2-3/4" only
- Handing: Non handed
- Door thickness: 1-3/4" standard
- Case: Wrought steel, zinc dichromated.
- Non keyed lock
- Lever: Jefferson lever design
- Rose: Copenhagen rose trim
- Latchbolt: 3/4" throw, stainless steel one-piece anti-friction
- Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength
