Product Description

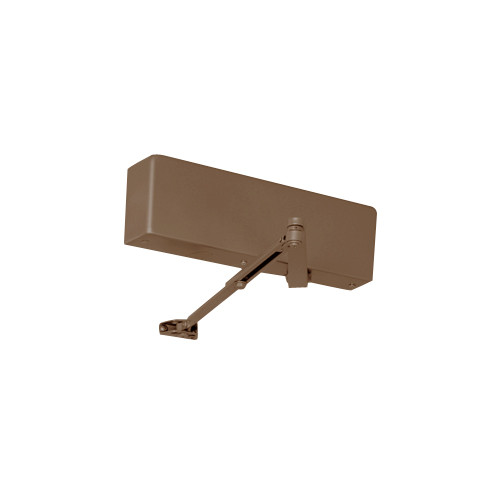

JS7500-690 Norton 7500 Series Non-Hold Open Institutional Door Closer with Top Jamb Application 3 inch Maximum Reveal in Statuary Bronze Finish

The Norton JS7500-690 non hold open door closer offers the ideal combination of superior performance, strength and quality. The 7500 Series door closer is the ideal for interior or exterior doors in facilities that demand reliability. This series are certified to ANSI/BHMA A156.4, Grade 1.

Features and Benefits:

• Statuary Bronze finish
• Handing: Non handed
• Non hold open
• Rack-and-pinion design
• Cast aluminum body
• Staked valves
• Adjustable spring sizes 1-6
• 2-3/16" (56mm) projection
• 1-1/2" (38mm) diameter piston
• Self-drilling screws
• Slide Tracks: push or pull side mounting
• Exceeds 25 million cycles (witnessed and verified by UL)
• Backcheck positioning valve
• Top jamb application only; 3" maximum reveal
