Product Description

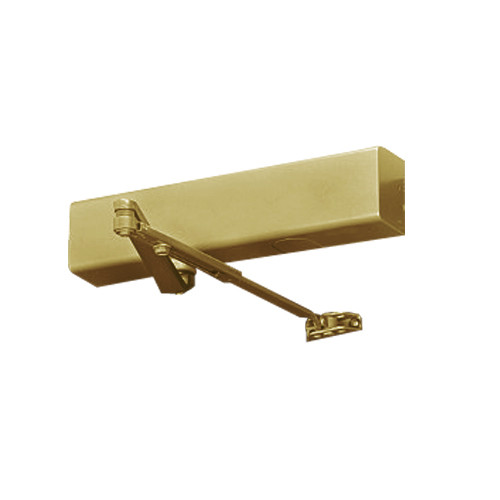

JS8501M-696 Norton 8000 Series Full Cover Non-Hold Open Door Closers with Top Jamb Application 3 inch Maximum Reveal in Gold Finish

The Norton JS8501M-696 Series door closer is used for office and commercial interior and exterior doors. The 8000 Series Door Closers offer the ideal combination of appearance, unwavering quality and durability. The medium-duty closer able to meet the many configurations that occur in outfitting a door closer. This series are certified to ANSI/BHMA A156.4, Grade 1.

Features and Benefits:

• Gold finish
• Non hold open
• Handing: Non handed
• Staked valves
• Metal cover is included
• Cast aluminum body
• Rack-and-pinion design
• Exceeds 15 million cycles
• 1-1/4" (32mm) diameter piston
• 5/8" (16mm) diameter pinion journals
• Adjustable spring sizes 1 through 6
• Full cover is included
• This product is manufactured in an ISO 9001 facility
• Door Thickness: 1-3/4" - 2-1/4" (44- 57mm) thick doors

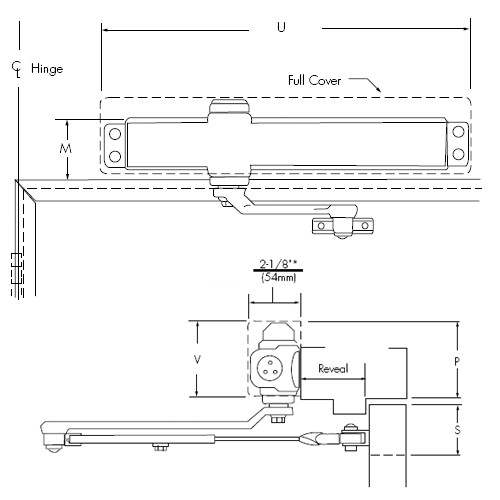

• Top jamb application only; 3" maximum reveal
