Product Description

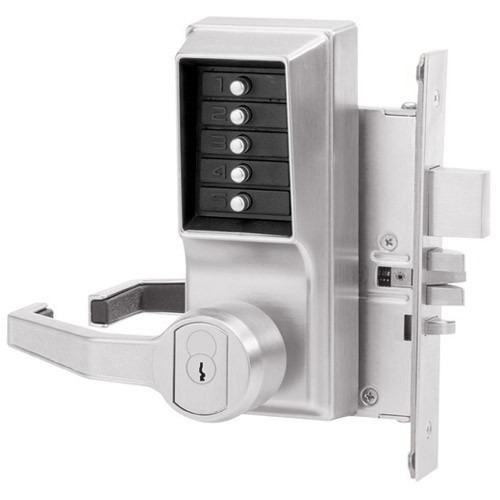

L8148M-026-41 Simplex Pushbutton Mortise Lock with Lever Medeco Core override in Bright Chrome Finish

The Simplex L8148M-026-41 series of Simplex Pushbutton Lock eliminate problems and costs associated with issuing, controlling and collecting keys and cards. It also provides exterior access by combination, while allowing free egress. Unican Kaba Ilco Simplex is the leader in top of the line security solutions that presents industrial strength combination lock with high quality security products for over 100 years now. For a security lock, the highly weather resistant Simplex 8100 Series earns an impressive Grade 1 rating from ANSI (American National Standards Institute) - this rating is the highest one they give out for quality. The Simplex 8100 grants entry upon successful validation of a 1 to 5 digit code that you pre-program into the lock. Being vandal protected hardware, the Simplex series of PIN based locks find widespread acceptance in high-traffic commercial, institutional, and government buildings throughout the world.

Features and Benefits:

• Bright Chrome Finish
• 100% push-button lock
• Exterior access is by combination, Egress is by interior lever and is free at all times
• Simple to install, use and maintain
• Thousands of possible codes combinations
• It has a deadbolt feature for added security
• ADA compliant lock
• It includes a mortise lock that can operate in passage mode or be locked whereas the inside is always unlocked
• Combination entry with key override, passage, lockout and deadbolt access function
• Low maintenance with no batteries or wires eliminates the material and labor expense of battery replacements
• Covers existing standard ASA 161 door hole
• Left hand handing operation
• UL listed hardware
• Very Economical - a cost effective access control solution
• Its lock is easily programmed via keypad without removing the lock from the door - Awesome
• Single access code feature makes 'one easy-to-manage code' for all users
• Vandal resistant hardware with solid metal pushbuttons
• Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
• Medeco/ASSA/Yale/Abloy (5 or 6-pin length) as key override feature; core not included
• It easily installs on wood or metal doors
• Minimum stile recommended: 5" (127 mm)
• Simple On Door Code Change
• Door Thickness: 1-3/4" (44 mm) to 2-1/4" (57 mm)
• High Usage
• Heavy Duty - Ansi 156.3
• Backset: 2-3/4 inch (70 mm)
• 3 years manufacturer warranty
