Product Description

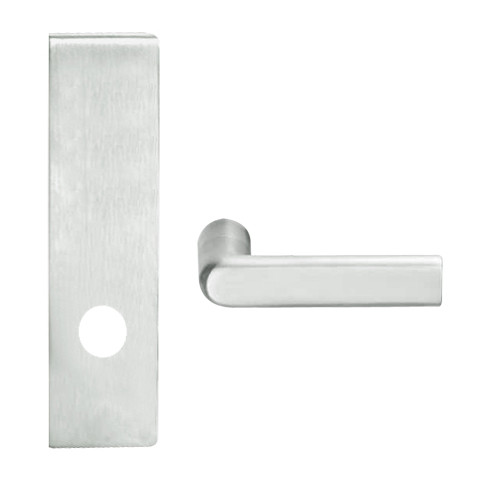

L9025-01N-619 Schlage L Series Exit Commercial Mortise Lock with 01 Cast Lever Design in Satin Nickel Finish

The Schlage L9025-01N-619 commercial mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L9025 series meets ANSI/BHMA A156.13 series 1000 Grade 1.

Exit Lock - No outside trim. Aux latch. Inside knob/lever only always free for immediate egress.

Features and Benefits:

• Satin Nickel finish
• 01 Cast lever style
• Escutcheon: N - Escutcheon (200mm x 64mm x 11mm)
• Non keyed function
• Handing: Field-reversible
• Door range: 1-3/4"
• Backset: 2-3/4"
• Strike plate: 1/4" x 4-7/8" Square corner, 1-3/16" lip, box
• Case size: 4-7/16" x 6-1/16" x 1"
• Armor front: 1-1/4" x 8"
• Exit lock: No outside trim; Inside lever only always free for immediate egress.
• Latchbolt: 3/4" Throw stainless steel with anti-friction tongue
• Floating mounting tabs automatically adjust to fit a beveled door edge.
