Product Description
L9060BD-02B-613 Schlage L Series Apartment Entrance Commercial Mortise Lock with 02 Cast Lever Design Prepped for SFIC in Oil Rubbed Bronze Finish
The Schlage L9060BD-02B-613 commercial mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L9060BD series meets ANSI/BHMA A156.13 series 1000 Grade 1.
Apartment Entrance Lock: Latchbolt retracted by knob/lever from either side unless outside is locked by key from inside. When locked, latchbolt retracted by key outside or knob/lever inside. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.
Features and Benefits:
- Oil Rubbed Bronze finish

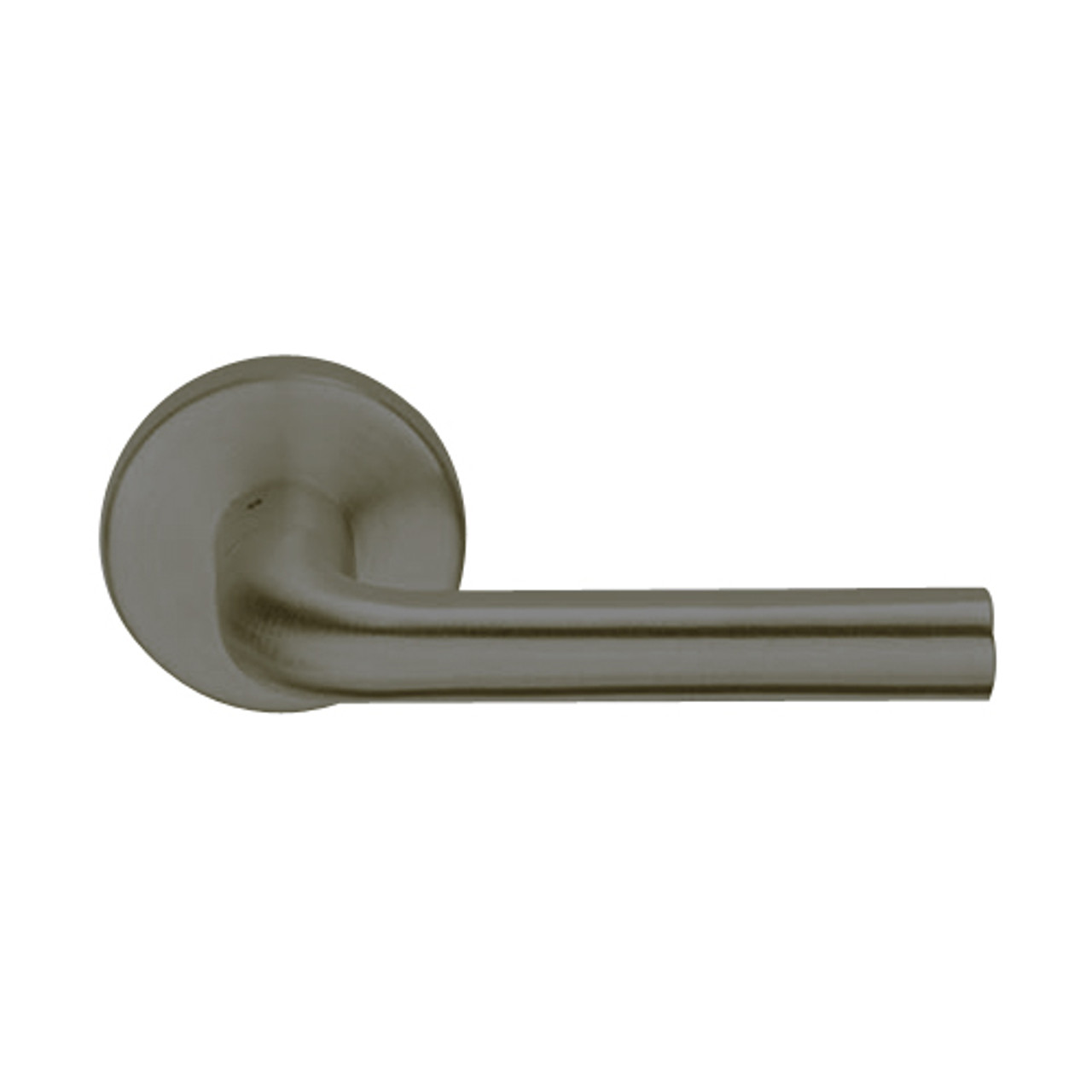

- 02 Cast lever style
- B wrought rose, 2-9/8" (65 mm) diameter
- Double keyed function without deadbolt
- Handing: Field Reversible
- Door range: 1-3/4"
- Backset: 2-3/4"
- Core is not include
- Prepped for less small format interchangeable core
- Strike plate: 1-1/4" x 4-7/8" Square corner, 1-3/16" lip, box
- Case size: 4-7/16" x 6-1/16" x 1"
- Armor front: 1-1/4" x 8"
- Floating mounting tabs automatically adjust to fit a beveled door edge.
