Product Description

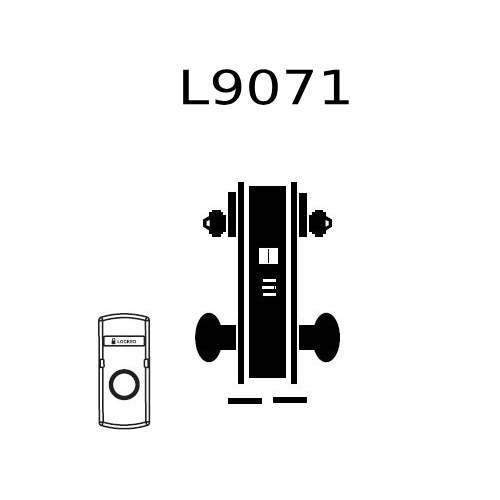

L9071J-17B-619 Schlage L Series Classroom Security Commercial Mortise Lock with 17 Cast Lever Design Prepped for FSIC in Satin Nickel Finish
The Schlage L9071J-17B-619 commercial mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L9071J series meets ANSI/BHMA A156.13 series 1000 Grade 1.
Classroom security lock: Latchbolt retracted by lever from either side unless outside is locked by key from either side. Auxiliary latch deadlocks latchbolt when door is locked. Inside lever is always free for immediate egress.
Features and Benefits:
- Satin Nickel finish
- 17 Cast lever style
- B wrought rose, 2-9/8" (65 mm) diameter
- Double keyed function without deadbolt
- Handing: Field Reversible
- Door range: 1-3/4"
- Backset: 2-3/4"
- Core is not include
- Prepped for less full size interchangeable core
- Strike plate: 1-1/4" x 4-7/8" Square corner, 1-3/16" lip, box
- Case size: 4-7/16" x 6-1/16" x 1"
- Armor front: 1-1/4" x 8"
- Floating mounting tabs automatically adjust to fit a beveled door edge.
