Product Description

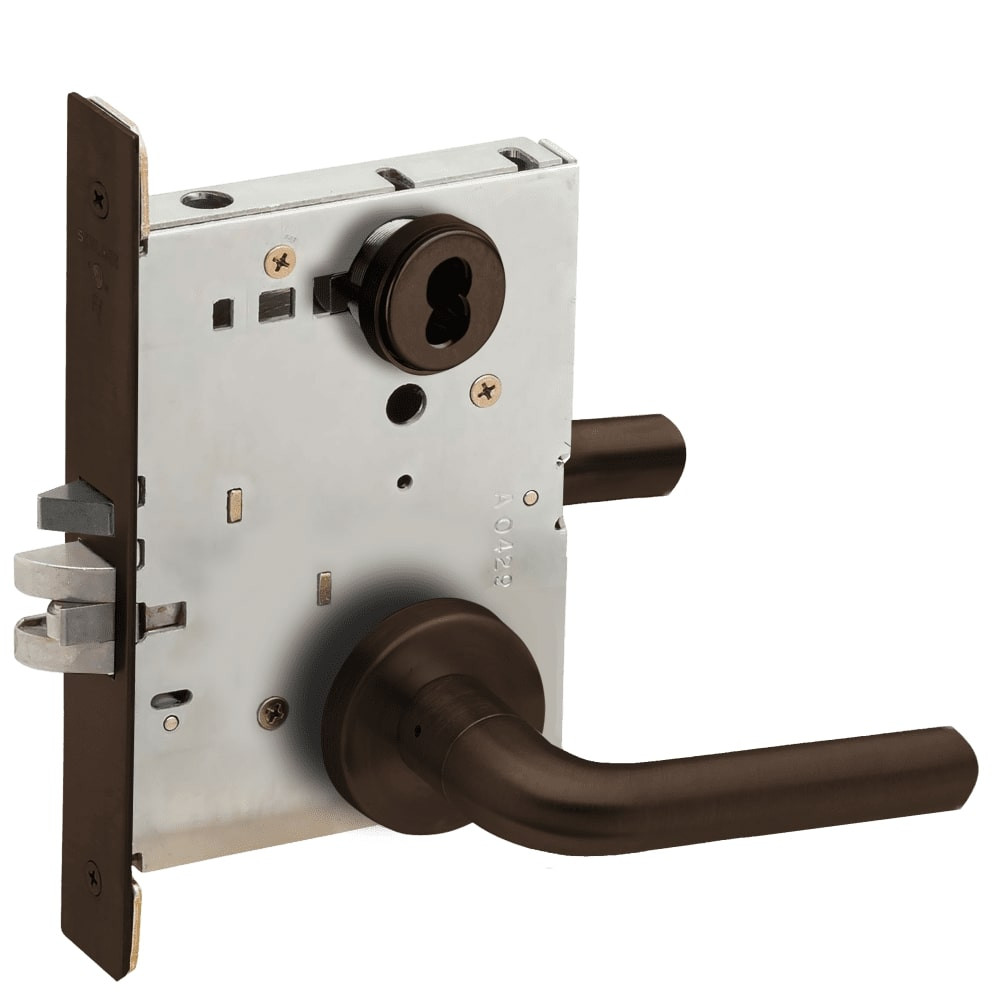

L9080J-02A-613-LX Schlage L Series Storeroom Commercial - Latchbolt Monitor Mortise Lock with 02 Cast Lever Design Prepped for FSIC in Oil Rubbed Bronze Finish
The Schlage L9080J-02A-613-LX Commercial - Latchbolt Monitor mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L9080J series meets ANSI/BHMA A156.13 series 1000 Grade 1.
Storeroom lock - Latchbolt retracted by key outside or by lever inside. Outside lever is always inoperative. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free for immediate egress.
Features and Benefits:
- Oil Rubbed Bronze finish
- 02 Cast lever style
- A wrought rose, 2-1/8" (54 mm) diameter
- Single keyed function without deadbolt
- Handing: Field-reversible
- Door range: 1-3/4"
- Backset: 2-3/4"
- Core is not include
- Prepped for less full size interchangeable core
- Strike plate: 1/4" x 4-7/8" Square corner, 1-3/16" lip, box
- Case size: 4-7/16" x 6-1/16" x 1"
- Armor front: 1-1/4" x 8"
- Floating mounting tabs automatically adjust to fit a beveled door edge.
