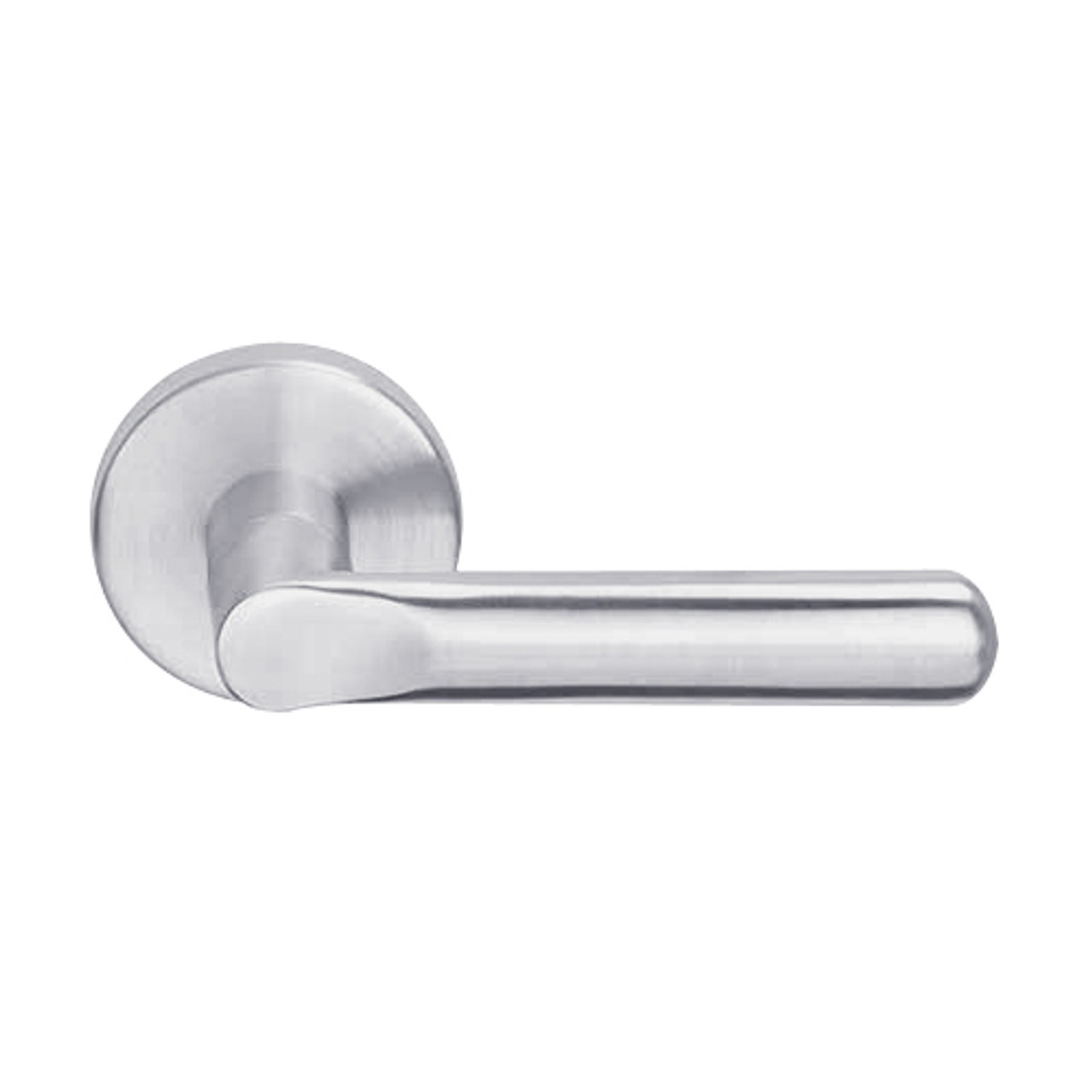

L9080L-18A-626-RX Schlage L Series Less Cylinder Storeroom Commercial - Request to Exit Mortise Lock with 18 Cast Lever Design in Satin Chrome

Overview
Warranty Information
Reviews

Product Description

L9080L-18A-626-RX Schlage L Series Less Cylinder Storeroom Commercial - Request to Exit Mortise Lock with 18 Cast Lever Design in Satin Chrome Finish

The Schlage L9080L-18A-626-RX Commercial - Request to Exit mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L9080L series meets ANSI/BHMA A156.13 series 1000 Grade 1.

Storeroom lock - Latchbolt retracted by key outside or inside. Outside lever is always inoperative. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free for immediate egress.

Features and Benefits:

Satin Chrome finish
18 Cast lever style
A wrought rose, 2-1/8" (54 mm) diameter
Single keyed function without deadbolt
Handing: Field-reversible
Door range: 1-3/4"
Backset: 2-3/4"
Cylinder: No cylinders are included with this lock
Strike plate: 1/4" x 4-7/8" Square corner, 1-3/16" lip, box
Case size: 4-7/16" x 6-1/16" x 1"
Armor front: 1-1/4" x 8"
Floating mounting tabs automatically adjust to fit a beveled door edge.
