Product Description
L9080R-OME-A-606 Schlage L Series Storeroom Commercial Mortise Lock with Omega Lever Design and Full Size Core in Satin Brass Finish
The Schlage L9080R-OME-A-606 commercial mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L9080R series meets ANSI/BHMA A156.13 series 1000 Grade 1.

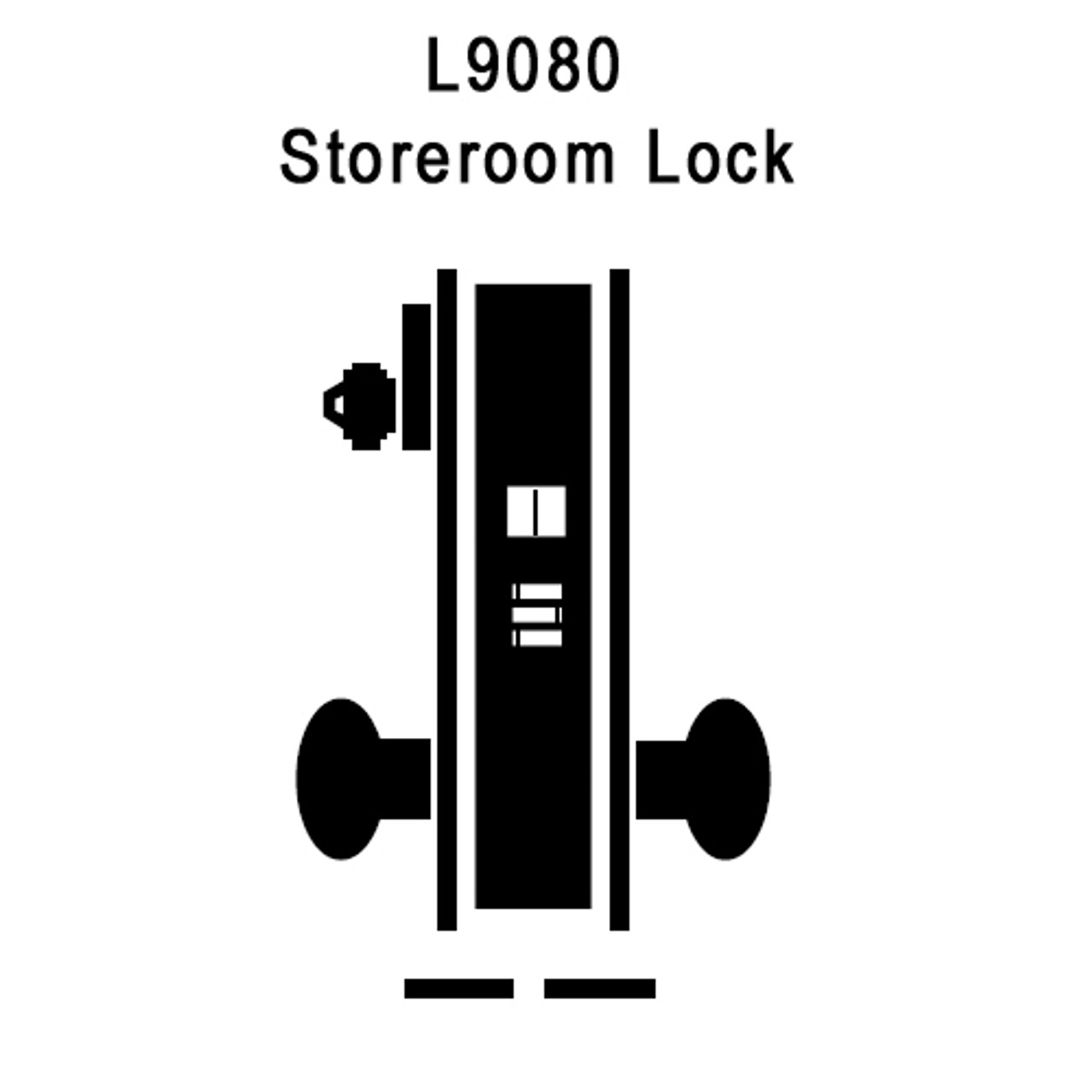

Storeroom lock - Latchbolt retracted by key outside or by lever inside. Outside lever is always inoperative. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free for immediate egress.
Features and Benefits:
- Satin Brass finish
- Omega lever style
- A wrought rose, 2-1/8" (54 mm) diameter
- Single keyed function without deadbolt
- Handing: Field-reversible
- Door range: 1-3/4"
- Backset: 2-3/4"
- Full size core
- Furnished 1-bitted w/ two 6-pin keys
- Strike plate: 1/4" x 4-7/8" Square corner, 1-3/16" lip, box
- Case size: 4-7/16" x 6-1/16" x 1"
- Armor front: 1-1/4" x 8"
- Floating mounting tabs automatically adjust to fit a beveled door edge.
