Product Description
L9082L-01B-625 Schlage L Series Less Cylinder Institution Commercial Mortise Lock with 01 Cast Lever Design in Bright Chrome Finish
The Schlage L9082L-01B-625 commercial mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L9082L series meets ANSI/BHMA A156.13 series 1000 Grade 1.

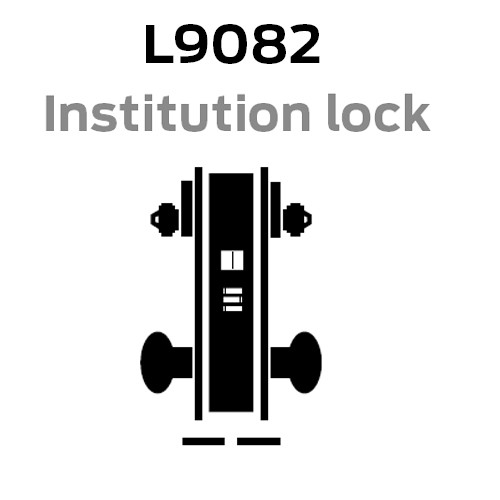

Institution lock - Latchbolt retracted by key from either side. Lever on both sides always inoperative. Auxiliary latch deadlocks latchbolt when door is closed.
Features and Benefits:
- Bright Chrome finish
- 01 Cast lever style
- B wrought rose, 2-9/8" (65 mm) diameter
- Double keyed function
- Handing: Field-reversible
- Door range: 1-3/4"
- Backset: 2-3/4"
- Cylinder: No cylinders are included with this lock
- Strike plate: 1/4" x 4-7/8" Square corner, 1-3/16" lip, box
- Case size: 4-7/16" x 6-1/16" x 1"
- Armor front: 1-1/4" x 8"
- Floating mounting tabs automatically adjust to fit a beveled door edge.
