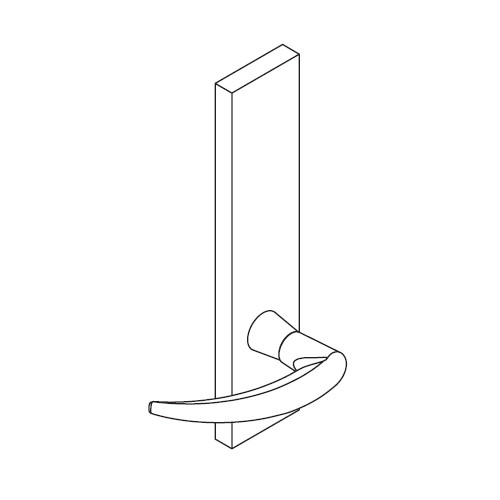

L9082L-OME-N-613 Schlage L Series Less Cylinder Institution Commercial Mortise Lock with Omega Lever Design in Oil Rubbed Bronze

Overview
Warranty Information
Reviews

Product Description

L9082L-OME-N-613 Schlage L Series Less Cylinder Institution Commercial Mortise Lock with Omega Lever Design in Oil Rubbed Bronze Finish

The Schlage L9082L-OME-N-613 commercial mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L9082L series meets ANSI/BHMA A156.13 series 1000 Grade 1.

Institution lock - Latchbolt retracted by key from either side. Lever on both sides always inoperative. Auxiliary latch deadlocks latchbolt when door is closed.

Features and Benefits:

Oil Rubbed Bronze finish
Omega lever style
Escutcheon: N - Escutcheon (200mm x 64mm x 11mm)
Double keyed function
Handing: Field-reversible
Door range: 1-3/4"
Backset: 2-3/4"
Cylinder: No cylinders are included with this lock
Strike plate: 1/4" x 4-7/8" Square corner, 1-3/16" lip, box
Case size: 4-7/16" x 6-1/16" x 1"
Armor front: 1-1/4" x 8"
Floating mounting tabs automatically adjust to fit a beveled door edge.
