Product Description

L9082P-01B-619 Schlage L Series Institution Commercial Mortise Lock with 01 Cast Lever Design in Satin Nickel Finish

The Schlage L9082P-01B-619 commercial mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L9082P series meets ANSI/BHMA A156.13 series 1000 Grade 1.

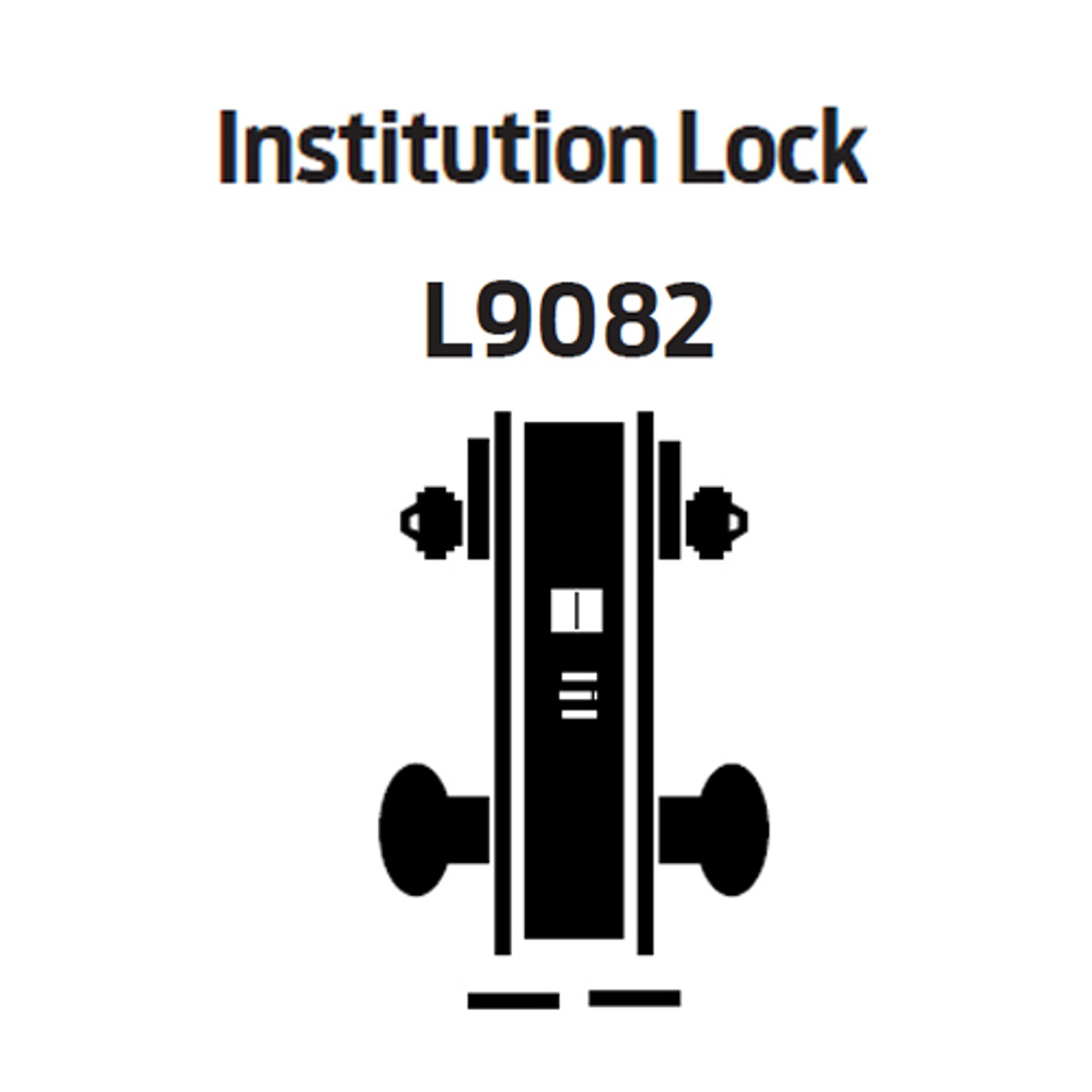

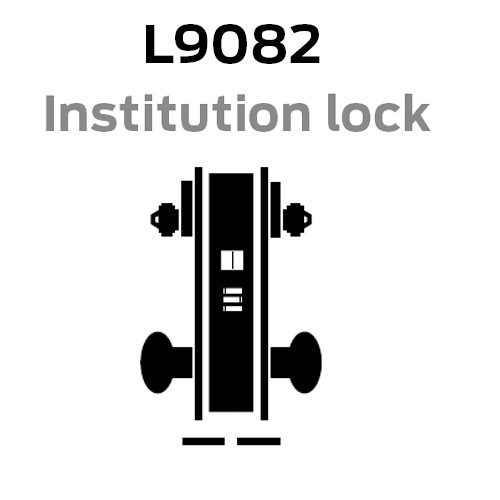

Institution lock: Latchbolt retracted by key from either side. lever on both sides always inoperative. Auxiliary latch deadlocks latchbolt when door is locked.

Features and Benefits:

• Satin Nickel finish
• 01 Cast lever style
• B wrought rose, 2-9/8" (65 mm) diameter
• Double keyed function without deadbolt
• Handing: Field Reversible
• Door range: 1-3/4"
• Backset: 2-3/4"
• Keys: Two nickel silver cut keys per lock
• Cylinder: 6-pin full-face mortise cylinder with Schlage logo
• Strike plate: 1-1/4" x 4-7/8" Square corner, 1-3/16" lip, box
• Case size: 4-7/16" x 6-1/16" x 1"
• Armor front: 1-1/4" x 8"
• Floating mounting tabs automatically adjust to fit a beveled door edge.
