Product Description
L9457P-OME-B-625 Schlage L Series Classroom Security w/Deadbolt Commercial Mortise Lock with Omega Lever Design in Bright Chrome Finish
The Schlage L9457P-OME-B-625 commercial mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L9457P series meets ANSI/BHMA A156.13 series 1000 Grade 1.

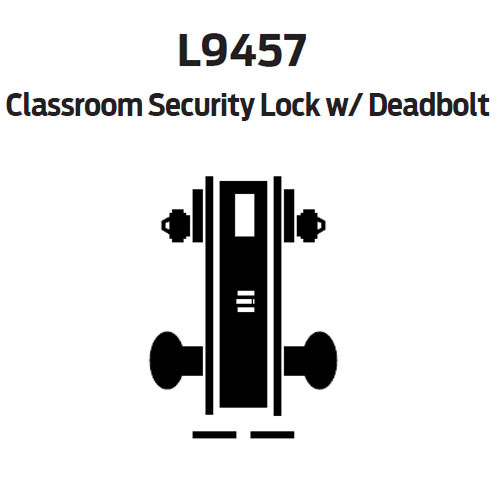

Classroom security lock with deadbolt: Latchbolt retracted by lever from either side. Deadbolt thrown or retracted by key from either side. Throwing deadbolt locks outside lever. Turning inside lever simultaneously retracts deadbolt and latchbolt and unlocks outside lever. Inside lever is always free for immediate egress.
Features and Benefits:
- Bright Chrome finish
- Omega lever style
- B wrought rose, 2-9/8" (65 mm) diameter
- Double keyed function with deadbolt
- Handing: Field Reversible
- Door range: 1-3/4"
- Backset: 2-3/4"
- Keys: Two nickel silver cut keys per lock
- Cylinder: 6-pin full-face mortise cylinder with Schlage logo
- Strike plate: 1-1/4" x 4-7/8" Square corner, 1-3/16" lip, box
- Case size: 4-7/16" x 6-1/16" x 1"
- Armor front: 1-1/4" x 8"
- Floating mounting tabs automatically adjust to fit a beveled door edge.
