Product Description
L9485L-OME-A-613-LH Schlage L Series Less Cylinder Faculty Restroom Commercial Mortise Lock with Omega Lever Design in Oil Rubbed Bronze Finish
The Schlage L9485L-OME-A-613-LH commercial mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L9485L series meets ANSI/BHMA A156.13 series 1000 Grade 1.

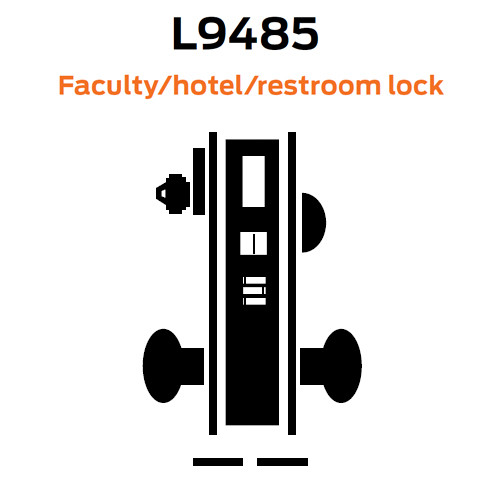

Faculty Restroom: Latchbolt retracted by key outside or by knob/lever inside. Outside knob/ lever always fixed. Deadbolt thrown or retracted by inside thumbturn. When deadbolt is thrown, all keys become inoperative except emergency or display keys. Turning inside knob/lever retracts both deadbolt and latchbolt simultaneously. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress. Not available in SFIC.
Features and Benefits:
- Oil Rubbed Bronze finish
- Omega lever style
- A wrought rose, 2-1/8" (54 mm) diameter
- Single keyed function without deadbolt
- Handing: Left handed
- Door range: 1-3/4"
- Backset: 2-3/4"
- Cylinder: No cylinders are included with this lock
- Strike plate: 1/4" x 4-7/8" Square corner, 1-3/16" lip, box
- Case size: 4-7/16" x 6-1/16" x 1"
- Armor front: 1-1/4" x 8"
- Floating mounting tabs automatically adjust to fit a beveled door edge.
