Product Description

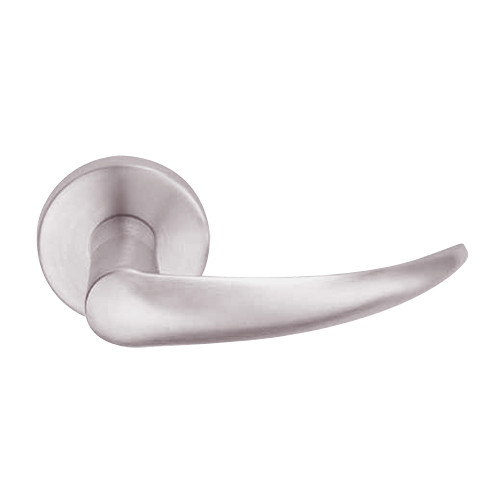

L9486J-OME-B-630-LH Schlage L Series Faculty Restroom with Do Not Disturb Indicator Mortise Lock with Omega Lever Design Prepped for FSIC in Satin Stainless Steel Finish
The Schlage L9486J-OME-B-630-LH commercial mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L9486J series meets ANSI/BHMA A156.13 series 1000 Grade 1.
Faculty Restroom with 09-611 Indicator: Latchbolt retracted by key outside or by knob/lever inside. Outside knob/ lever always fixed. Deadbolt thrown or retracted by inside thumbturn. When deadbolt is thrown, all keys become inoperative except emergency or display keys. Turning inside knob/lever retracts both deadbolt and latchbolt simultaneously. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress. Not available in SFIC. This is the "old style" indicator, not the 180 degree indicator available on most other functions.
Features and Benefits:
- Satin Stainless Steel finish
- Omega lever style
- B wrought rose, 2-9/8" (65 mm) diameter
- Single keyed function without deadbolt
- Handing: Left handed
- Door range: 1-3/4"
- Backset: 2-3/4"
- Core is not include
- Prepped for less full size interchangeable core
- Strike plate: 1/4" x 4-7/8" Square corner, 1-3/16" lip, box
- Case size: 4-7/16" x 6-1/16" x 1"
- Armor front: 1-1/4" x 8"
- Floating mounting tabs automatically adjust to fit a beveled door edge.
