Product Description
L9486L-05B-612-RH Schlage L Series Less Cylinder Faculty Restroom with Do Not Disturb Indicator Mortise Lock with 05 Cast Lever Design in Satin Bronze Finish
The Schlage L9486L-05B-612-RH commercial mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L9486L series meets ANSI/BHMA A156.13 series 1000 Grade 1.

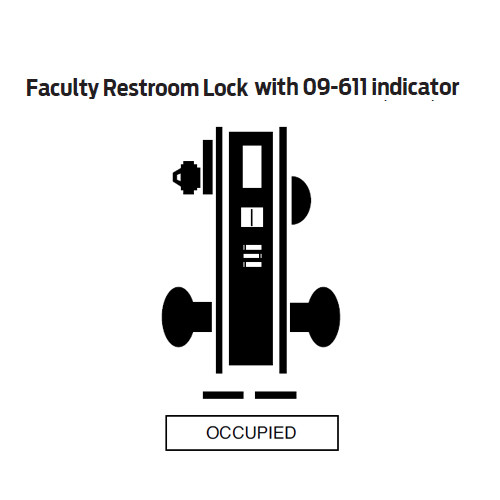

Faculty Restroom with 09-611 Indicator: Latchbolt retracted by key outside or by knob/lever inside. Outside knob/ lever always fixed. Deadbolt thrown or retracted by inside thumbturn. When deadbolt is thrown, all keys become inoperative except emergency or display keys. Turning inside knob/lever retracts both deadbolt and latchbolt simultaneously. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress. Not available in SFIC. This is the "old style" indicator, not the 180 degree indicator available on most other functions.
Features and Benefits:
- Satin Bronze finish
- 05 Cast lever style
- B wrought rose, 2-9/8" (65 mm) diameter
- Single keyed function without deadbolt
- Handing: Right handed
- Door range: 1-3/4"
- Backset: 2-3/4"
- Cylinder: No cylinders are included with this lock
- Strike plate: 1/4" x 4-7/8" Square corner, 1-3/16" lip, box
- Case size: 4-7/16" x 6-1/16" x 1"
- Armor front: 1-1/4" x 8"
- Floating mounting tabs automatically adjust to fit a beveled door edge.
