Product Description

LC-8204-LNL-04 Sargent 8200 Series Storeroom or Closet Mortise Lock with LNL Lever Trim Less Cylinder in Satin Brass Finish

The Sargent LC-8204-LNL-04 Storeroom/Closet mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.

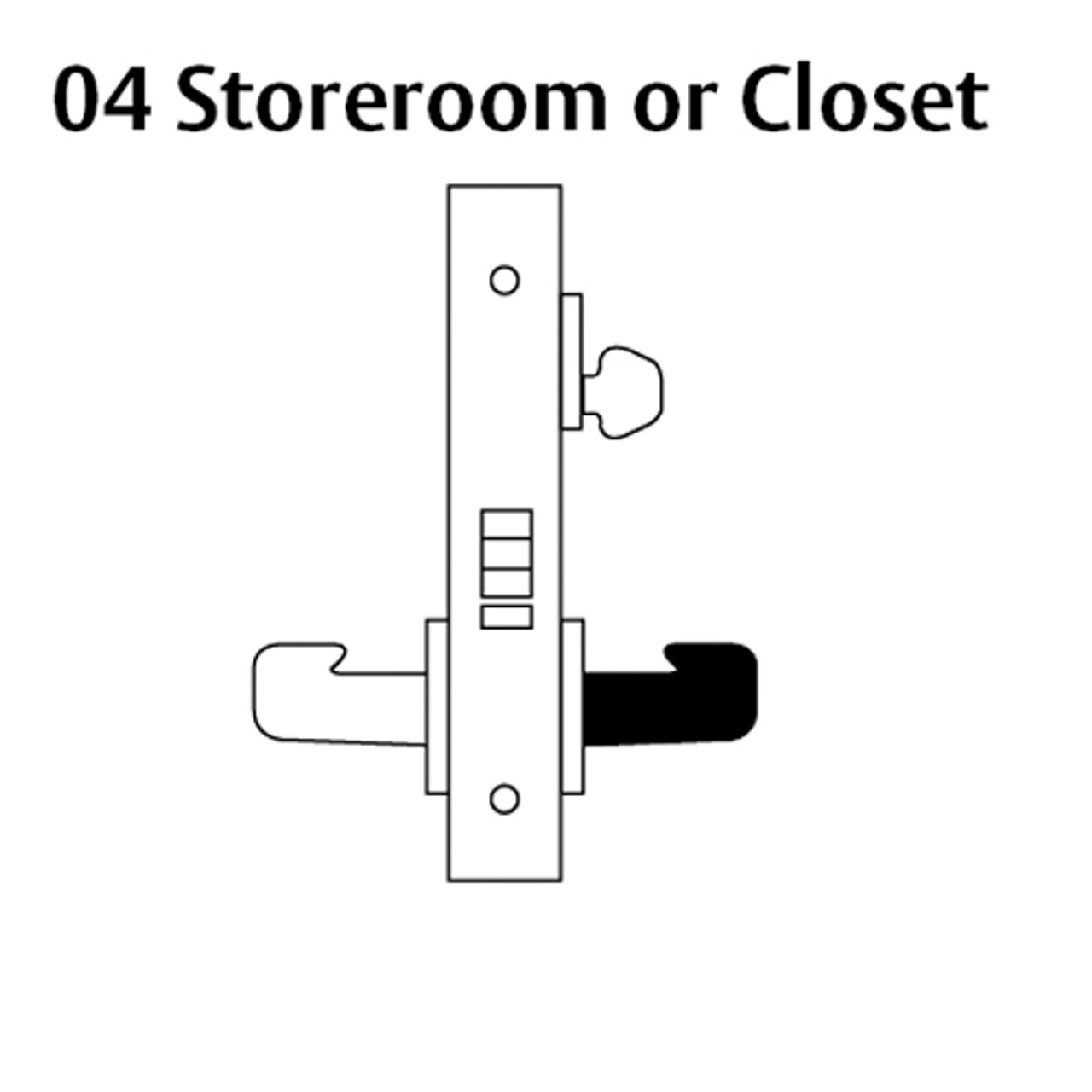

Storeroom or Closet lock: Key outside retracts latchbolt; Trim outside locked at all times; Trim inside always retracts latchbolt.

Features and Benefits:

• Satin Brass finish
• Minimum stile: 4-1/2" (114mm)
• Backset: 2-3/4" (70mm) only
• Handing: Reversible in field
• Springs: High carbon steel
• Strike: ANSI Standard; curved lip
• Latchbolt: Stainless steel 3/4" (19mm) projection one-piece, anti-friction reversible latch
• ANSI/BHMA: F07
• L-lever design with LN rose
• Single less cylinder without deadbolt
• No cylinders are included with this lock
• Door range: 1-3/4" (44mm) thick standard
