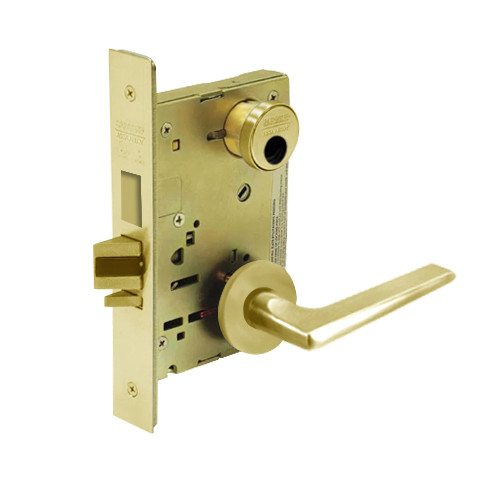

LC-8243-LNF-03 Sargent 8200 Series Apartment Corridor Mortise Lock with LNF Lever Trim and Deadbolt Less Cylinder in Bright Brass Finish
The Sargent LC-8243-LNF-03 Apartment Corridor mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.

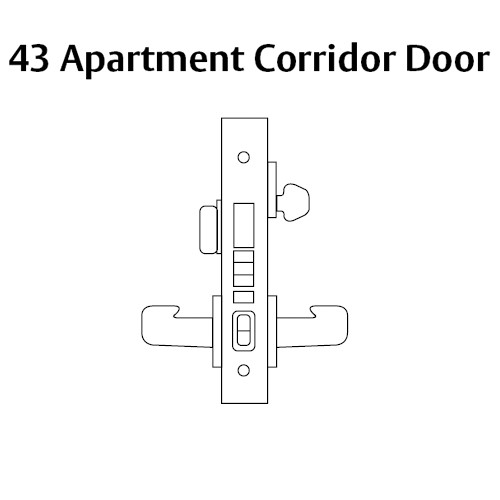

Apartment Corridor lock: Key and thumbturn both retract and project the deadbolt; Trim outside is locked by toggle or projecting deadbolt; Trim outside is unlocked by toggle only; Key retracts both latchbolt and deadbolt, trim outside remains locked; Trim inside always retracts latchbolt (and deadbolt simultaneously), trim outside remains locked.
Features and Benefits:
- Bright Brass finish
- Minimum stile: 4-1/2" (114mm)
- Backset: 2-3/4" (70mm) only
- Handing: Reversible in field
- Springs: High carbon steel
- Strike: ANSI Standard; curved lip
- Latchbolt: Stainless steel 3/4" (19mm) projection one-piece, anti-friction reversible latch
- F-lever design with LN rose
- Single cylinder with deadbolt
- No cylinders are included with this lock
- Door range: 1-3/4" (44mm) thick standard
