Product Description

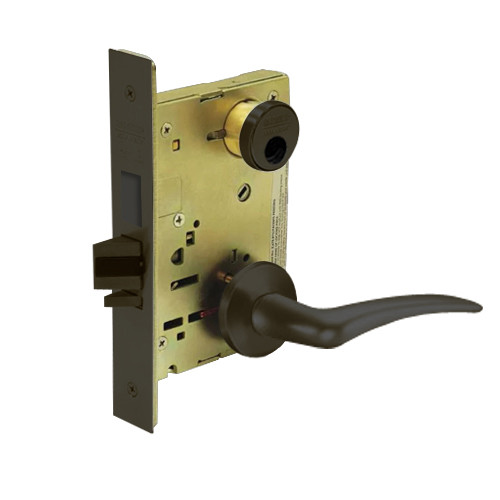

LC-8251-LNA-10B-LH Sargent 8200 Series Storeroom Deadbolt Mortise Lock with LNA Lever Trim and Deadbolt Less Cylinder in Oxidized Dull Bronze Finish

The Sargent LC-8251-LNA-10B-LH Storeroom Deadbolt mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.

Storeroom Deadbolt lock: Key and thumbturn both retract and project the deadbolt; Key will also retract latchbolt; Trim inside retracts latchbolt and deadbolt simultaneously; Trim outside is always locked.

Features and Benefits:

• Oxidized Dull Bronze finish
• Minimum stile: 4-1/2" (114mm)
• Backset: 2-3/4" (70mm) only
• Handing: Left handed
• Springs: High carbon steel
• Strike: ANSI Standard; curved lip
• Latchbolt: Stainless steel 3/4" (19mm) projection one-piece, anti-friction reversible latch
• A-lever design with LN rose
• Single cylinder with deadbolt
• No cylinders are included with this lock
• Door range: 1-3/4" (44mm) thick standard
