Product Description

LC-8259-LNL-26 Sargent 8200 Series School Security Mortise Lock with LNL Lever Trim Less Cylinder in Bright Chrome Finish

The Sargent LC-8259-LNL-26 School Security mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.

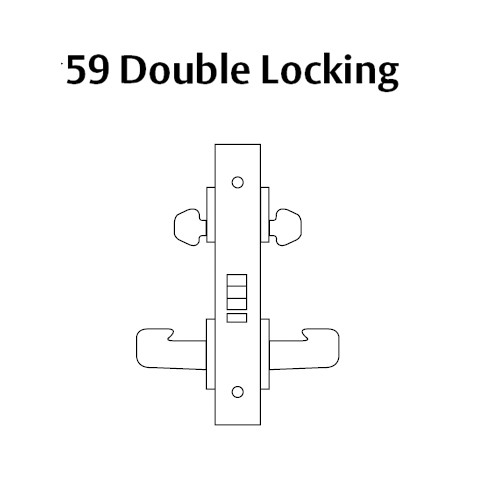

School Security lock: Key from either side locks and unlocks both the inside and outside trims; Key from either side retracts latchbolt; Key from either side can retract latchbolt without unlocking trims.

Features and Benefits:

• Bright Chrome finish
• Minimum stile: 4-1/2" (114mm)
• Backset: 2-3/4" (70mm) only
• Handing: Reversible in field
• Springs: High carbon steel
• Strike: ANSI Standard; curved lip
• Latchbolt: Stainless steel 3/4" (19mm) projection one-piece, anti-friction reversible latch
• L-lever design with LN rose
• Double cylinder without deadbolt
• No cylinders are included with this lock
• Door range: 1-3/4" (44mm) thick standard
