Product Description

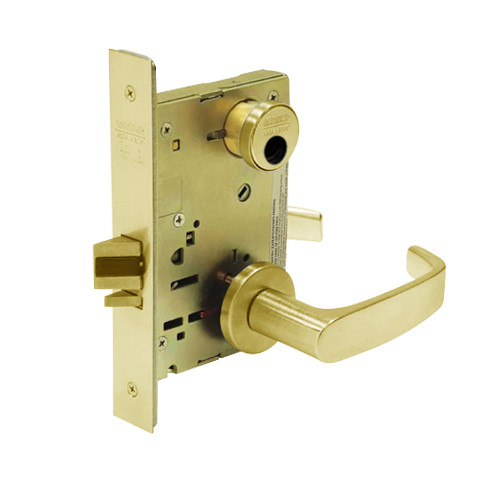

LC-8289-LNL-03 Sargent 8200 Series Holdback Mortise Lock with LNL Lever Trim Less Cylinder in Bright Brass Finish

The Sargent LC-8289-LNL-03 Holdback mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.

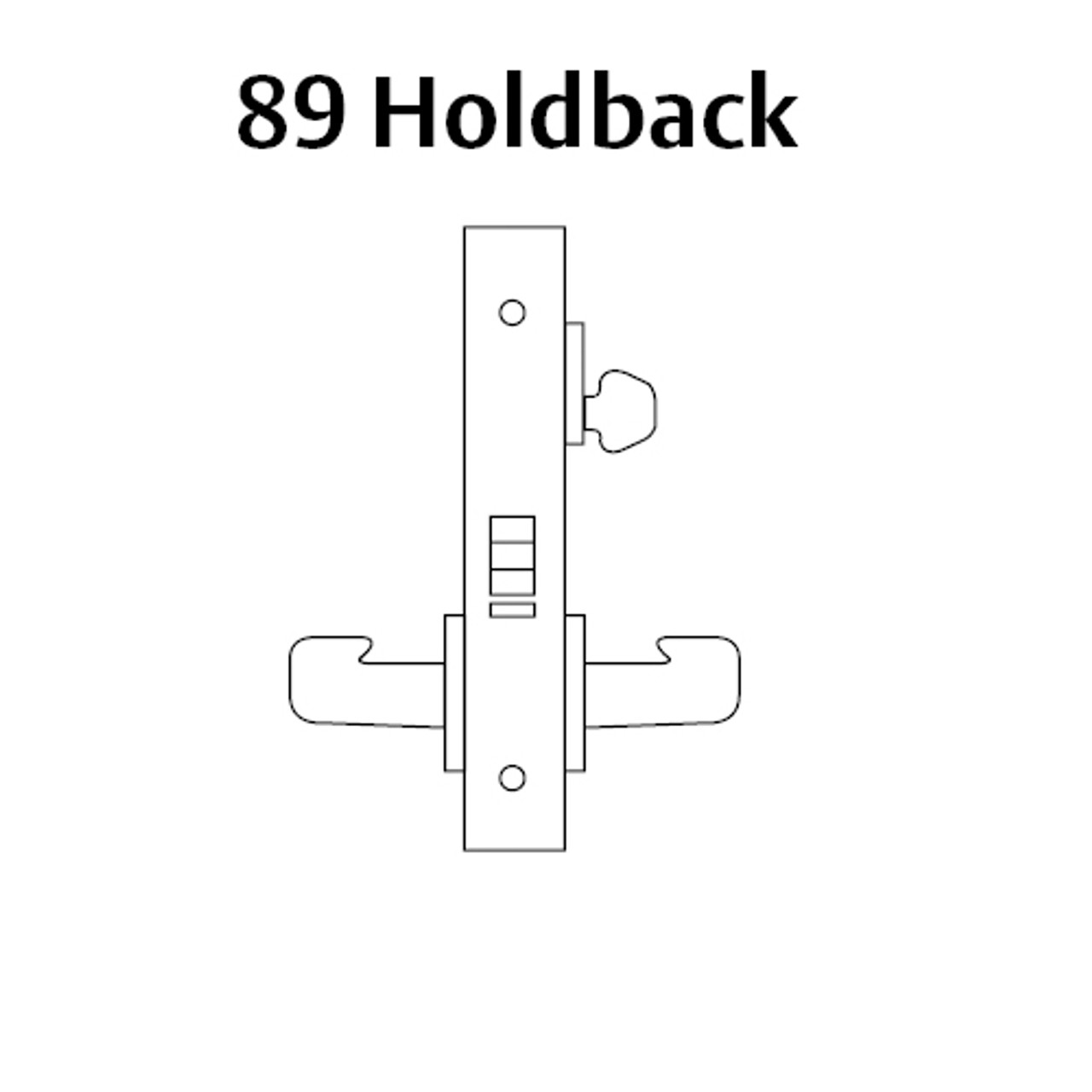

Holdback lock: Key outside retracts latchbolt, also locks and unlocks outside trim; Trim inside always retracts latchbolt; Latch holdback - to set, rotating and hold lever, then rotate key twice toward latchbolt. Lever will remain in rotated position indicating it is unlocked

Features and Benefits:

• Bright Brass finish
• Minimum stile: 4-1/2" (114mm)
• Backset: 2-3/4" (70mm) only
• Handing: Reversible in field
• Springs: High carbon steel
• Strike: ANSI Standard; curved lip
• Latchbolt: Stainless steel 3/4" (19mm) projection one-piece, anti-friction reversible latch
• L-lever design with LN rose
• Single less cylinder without deadbolt
• No cylinders are included with this lock
• Door range: 1-3/4" (44mm) thick standard
